McCloskey MWS CSP 30 Compact Sand Plant

McCloskey Washing Systems Compact Sand Plant- IN STOCK in INDIANA. Comes with Electrical Starters.

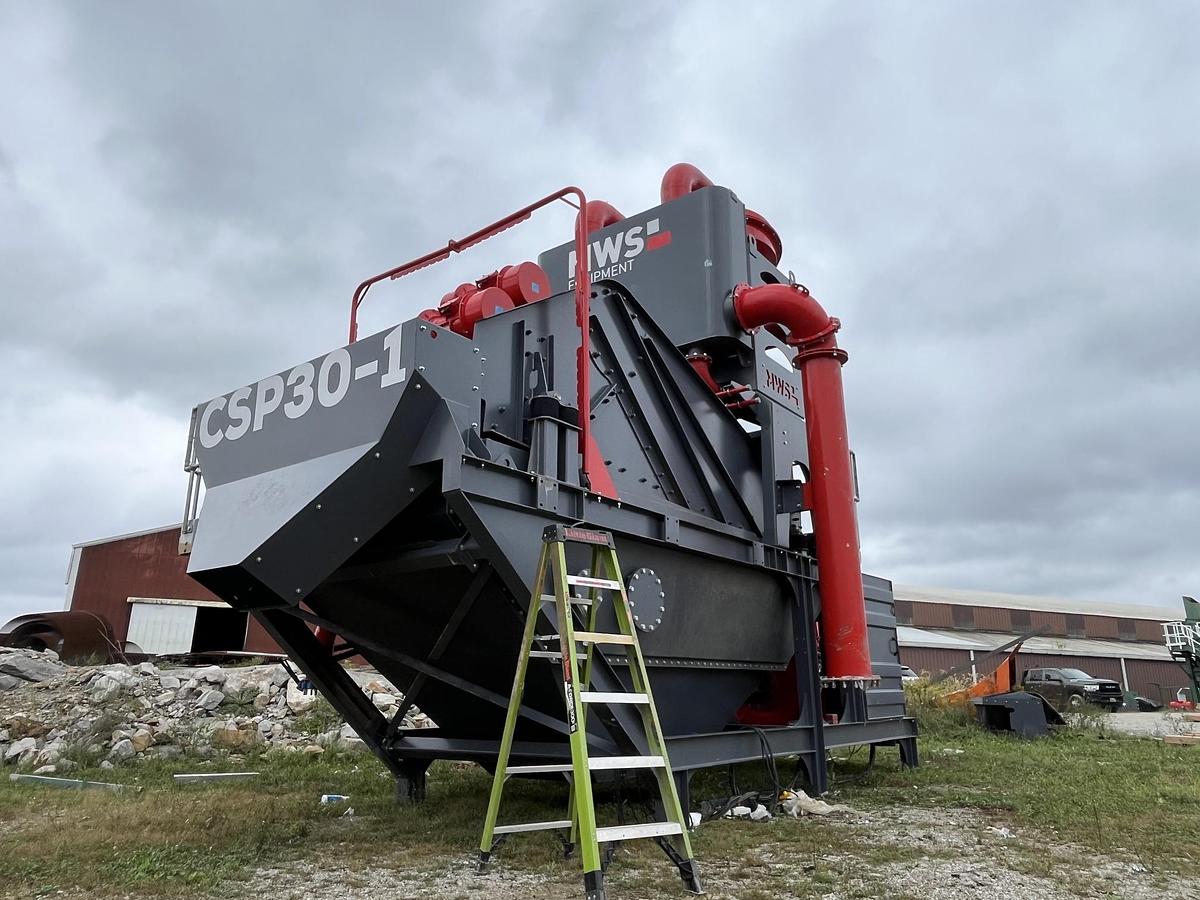

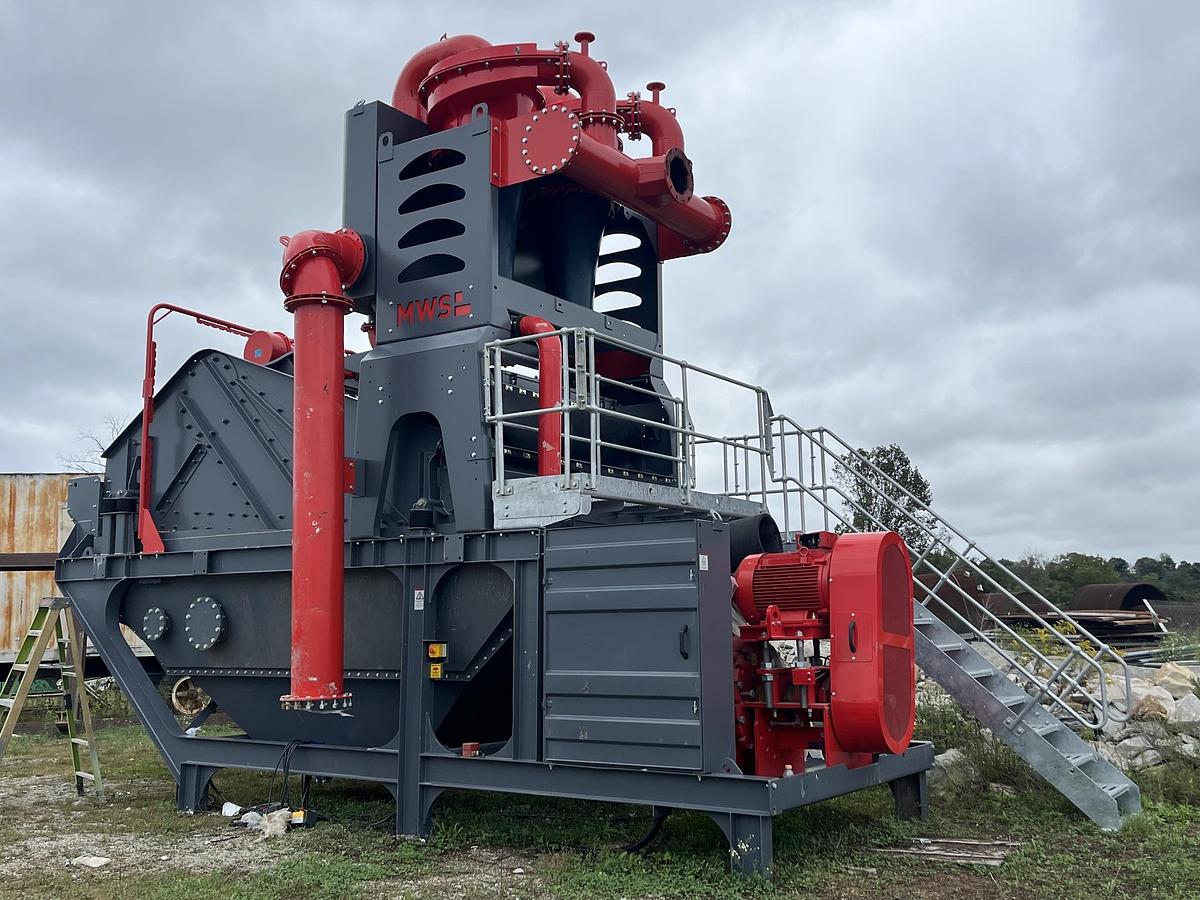

McCloskey Washing Systems CSP 30 Compact Sand Plant

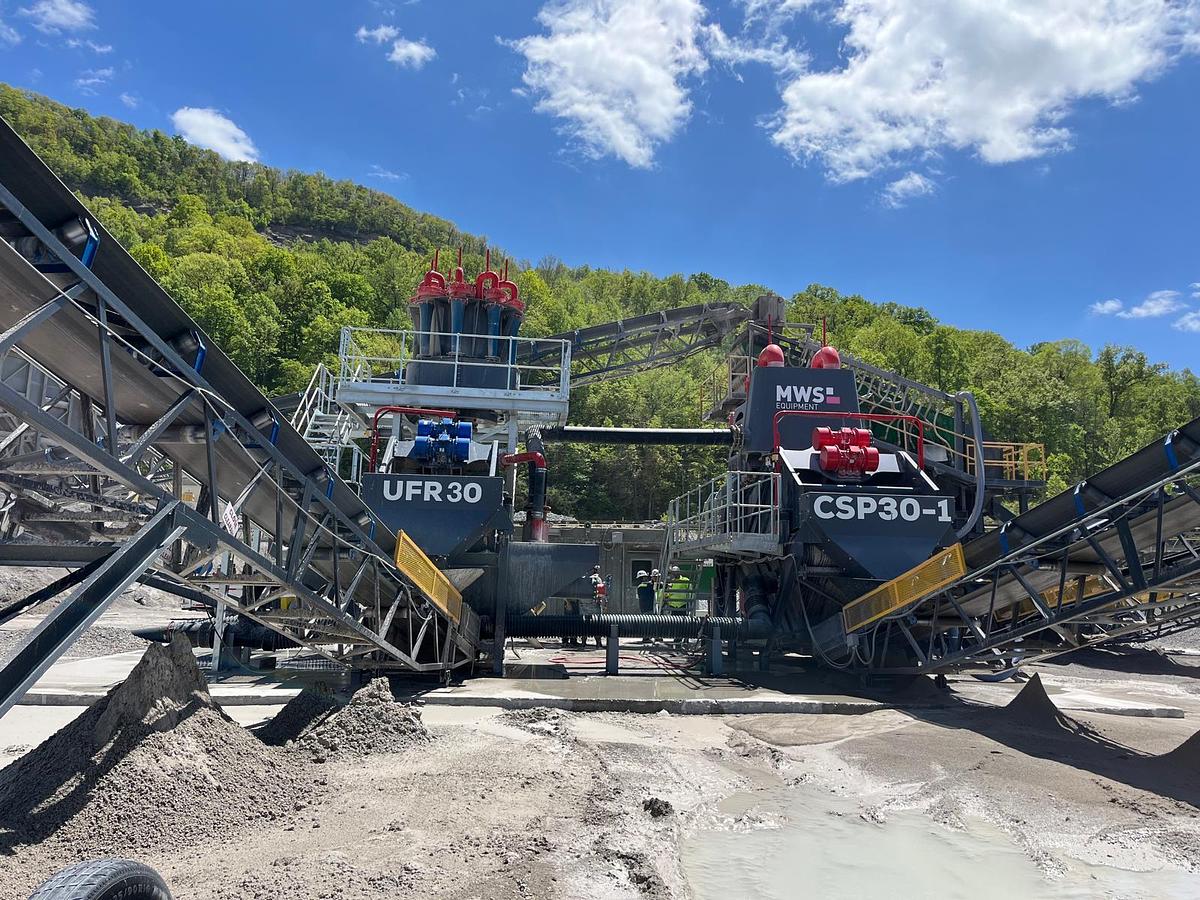

The McCloskey Washing Systems CSP 30 Compact Sand Plant combines washing, classification and dewatering in a compact, modular package. Designed to handle up to 300 US tons per hour of feed, the CSP 30 provides high-capacity sand processing for manufactured and natural sand applications.

The plant’s slurry pump feeds twin hydrocyclones to separate and recover sand before discharging it onto the dewatering screen. This integrated process removes unwanted fines while recovering valuable sand and producing a single finished sand grade.

Technical Features

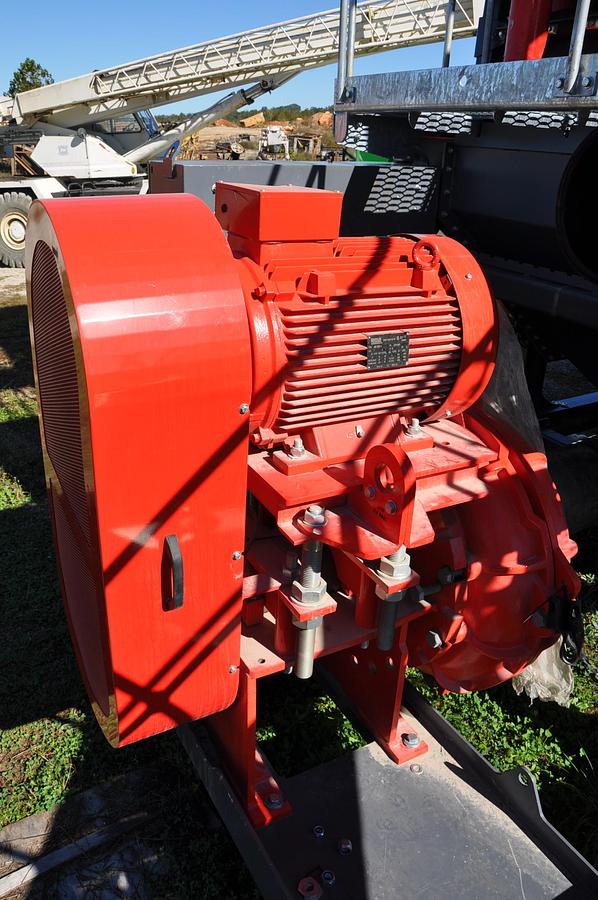

MR300E slurry pump, size 300/250, driven by a 100.6 HP (75 kW) electric motor

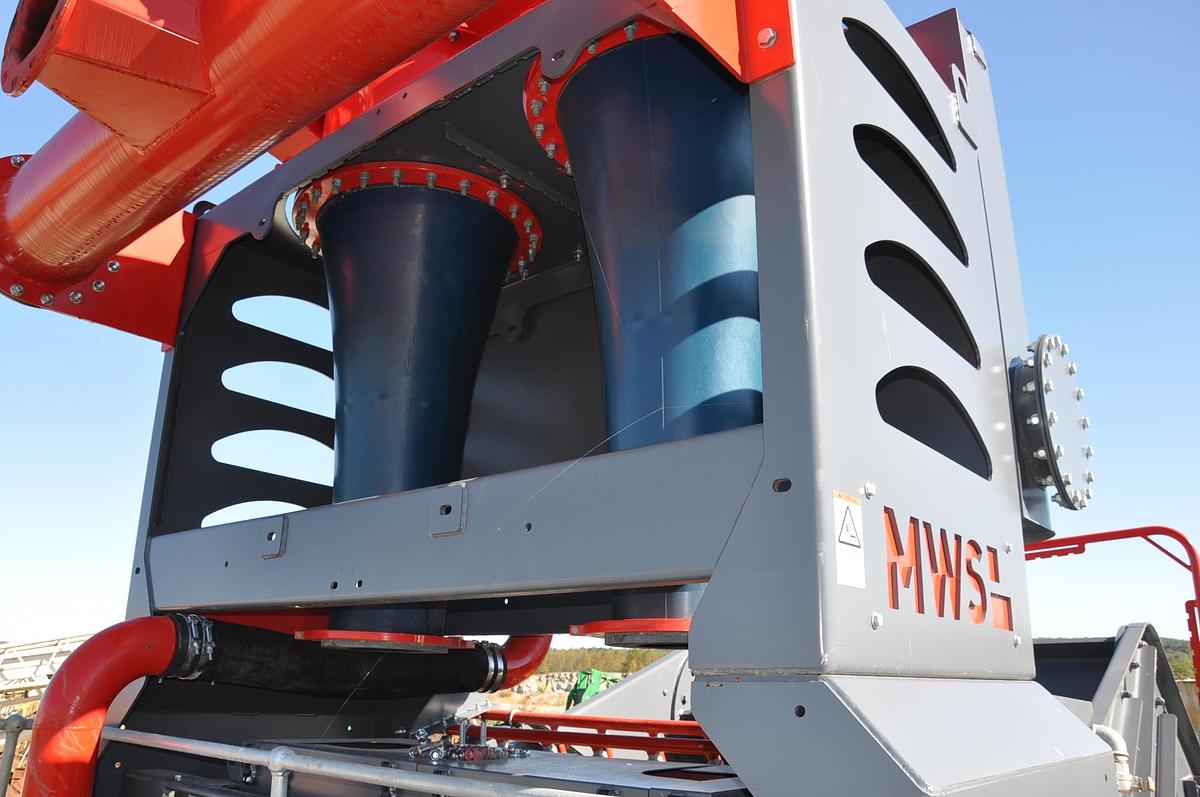

Twin MHC650 hydrocyclones, each approximately 25.6 inches (650 mm) in diameter

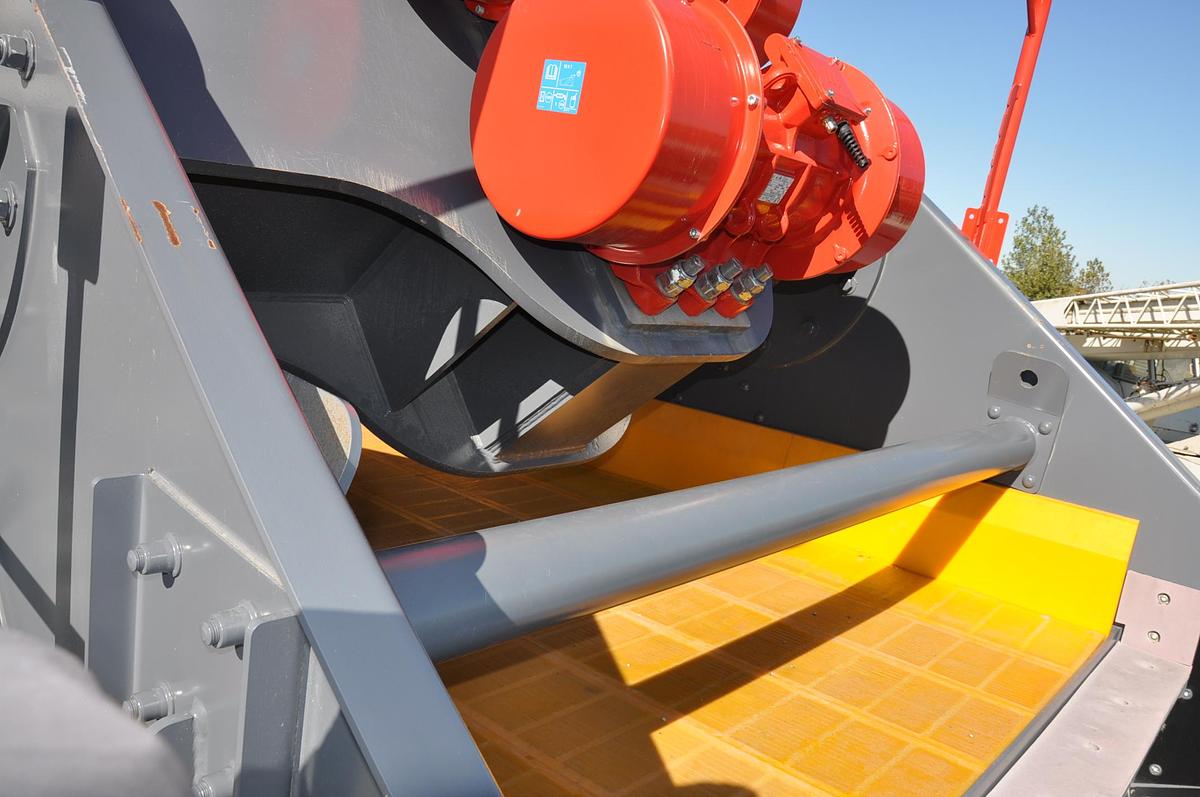

7' × 16' dewatering screen with electric vibrating motors

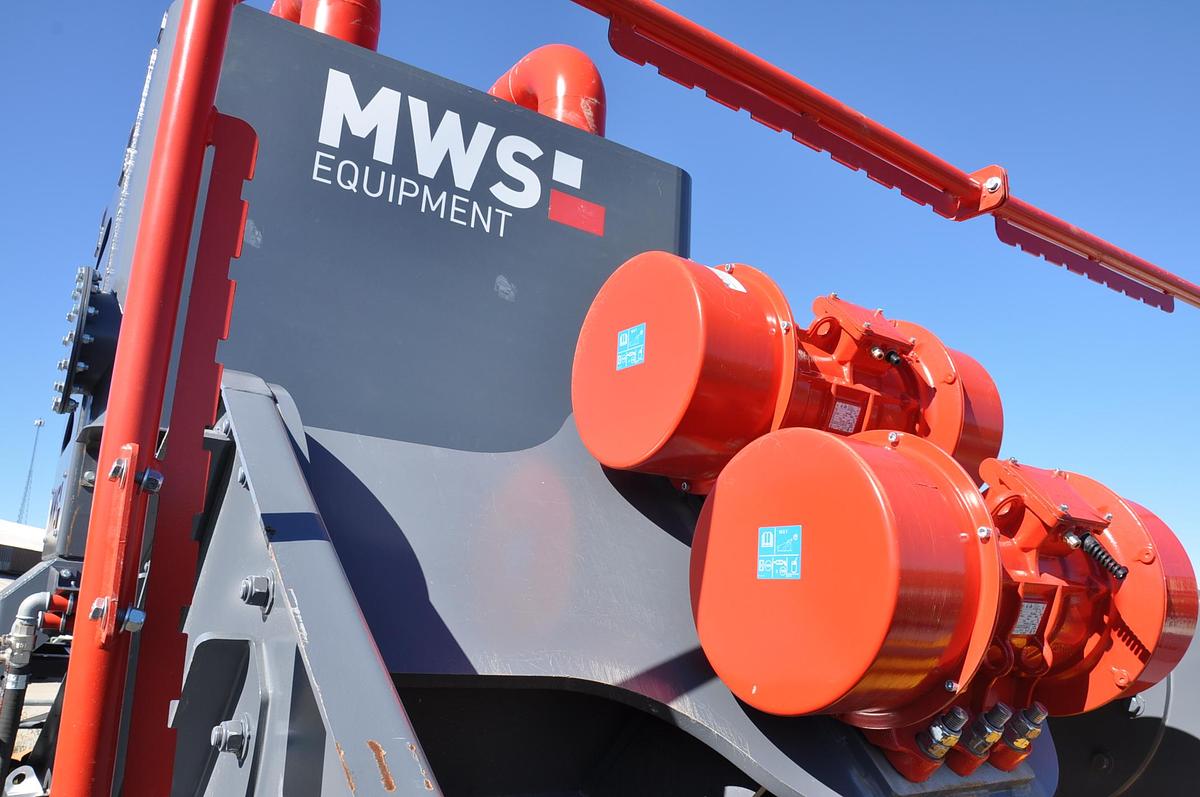

60 Hz screen drive: two 5.9 HP (4.4 kW) vibrating motors

Maximum 60 Hz power requirement: 112.4 HP (83.8 kW)

Approximate assembled dimensions: 29'8" long × 13' wide × 23'3" high

Modular construction with fast setup and access for maintenance

Raised chassis for washdown

Transport configuration fits into two 40-foot open-top containers

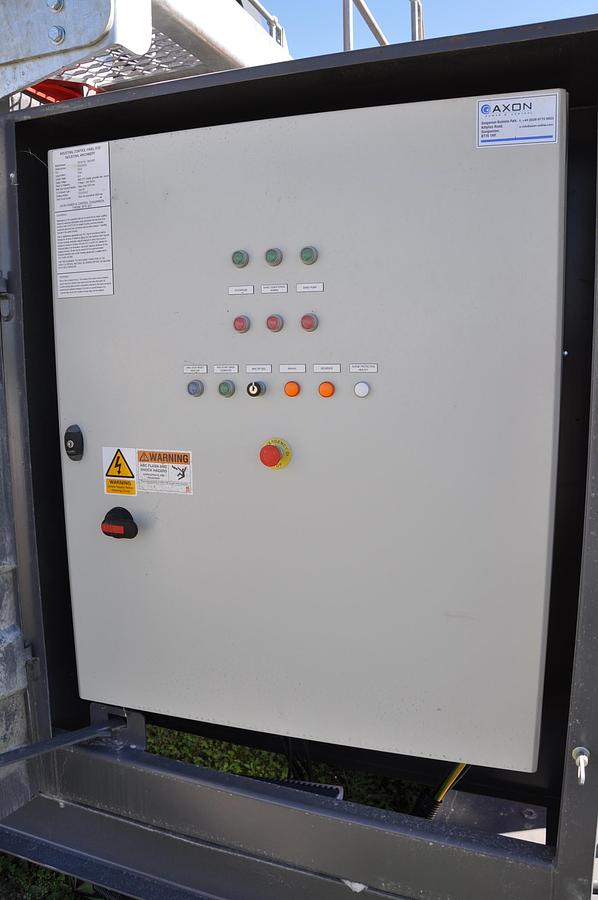

Optional electric control panel with stacker control

The integrated dewatering screen produces a “drip-free” finished sand product that is significantly drier than material discharged from traditional sand screws or fine material washers. This improves stockpiling, loading and transportation while reducing the free water carried into the finished product.

The CSP 30 can be integrated into a new plant or incorporated into an existing washing circuit. Its compact footprint, twin-cyclone arrangement and large dewatering screen provide a practical solution for producers seeking high sand recovery and a drier finished product.

Franklin Rock & Recycle is the exclusive distributor for sales and rentals of MWS (McCloskey Washing Systems) equipment in Indiana, Kentucky, Tennessee and Alabama. Franklin Rock & Recycle provides washing, classification and dewatering equipment, parts and service support throughout the Midwest and Mid-South.
