McCloskey MWS 36" x 25' Twin Fine Washer (Screw)

New McCloskey MWS/McCloskey 36" x 25' Twin Fine Washer. NEW IN STOCK in INDIANA.

McCloskey Washing Systems 3625T Twin Sand Screw

The McCloskey Washing Systems 3625T Twin Sand Screw is a heavy-duty fine material washer designed for washing, classifying and dewatering sand. Featuring twin 36-inch-diameter screws in a nominal 25-foot-long washer, the 3625T provides production capacity of 110–220 US tons per hour, depending on feed material and operating conditions.

Its large pool area and adjustable overflow weirs allow unwanted fines to leave with the overflow water while the screws convey recovered sand toward the discharge. Minimal screw-to-hull clearance helps limit material rollback, supporting efficient sand recovery and discharge.

Technical Features

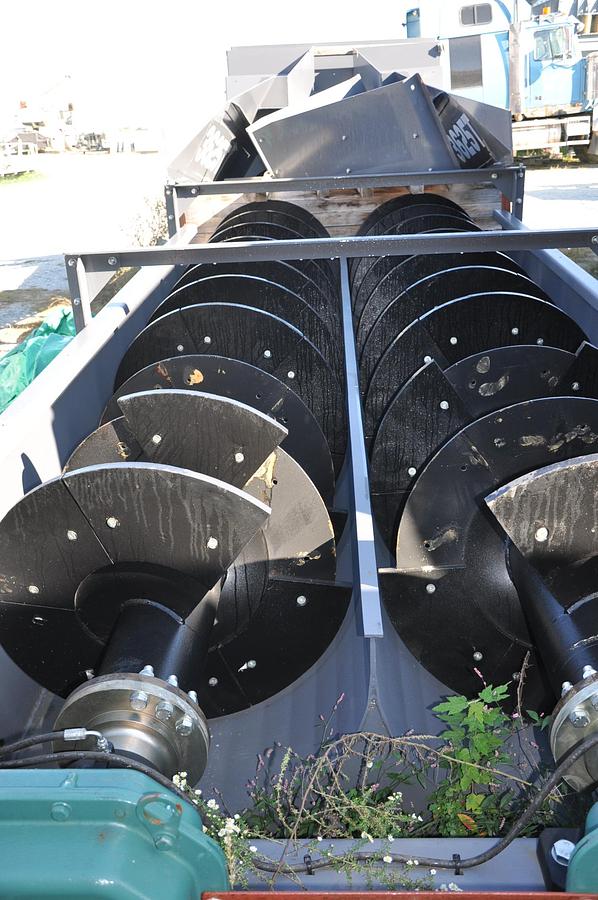

• Twin 36-inch-diameter screws operating at 21 RPM
• Production capacity of 110–220 US tons per hour
• Maximum feed size of ⅜-inch minus
• 30 HP (22 kW) total power requirement with electric drive
• Available with electric or hydraulic drive
• Water requirement of approximately 350–1,250 US gallons per minute, depending on application

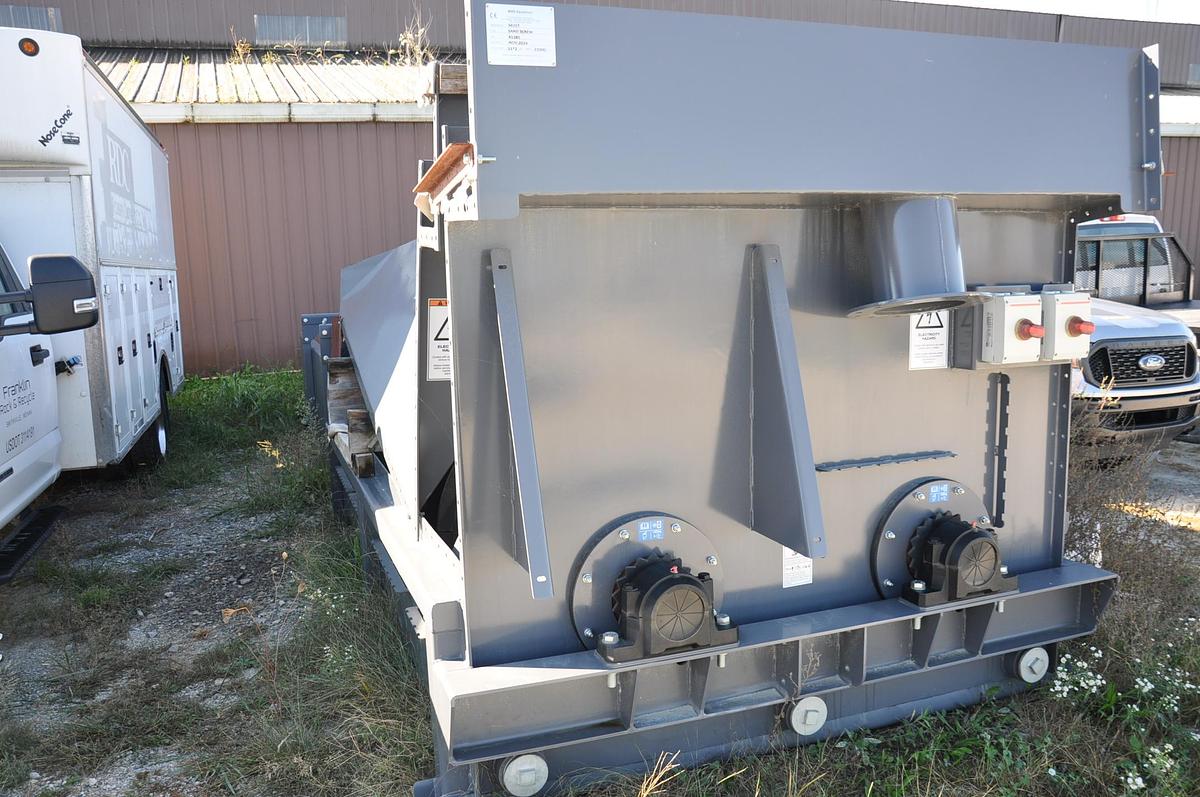

• Heavy-duty hull with an 18-degree working angle
• Overflow flume with adjustable weirs
• Replaceable screw shoe liners
• Lined material discharge chute

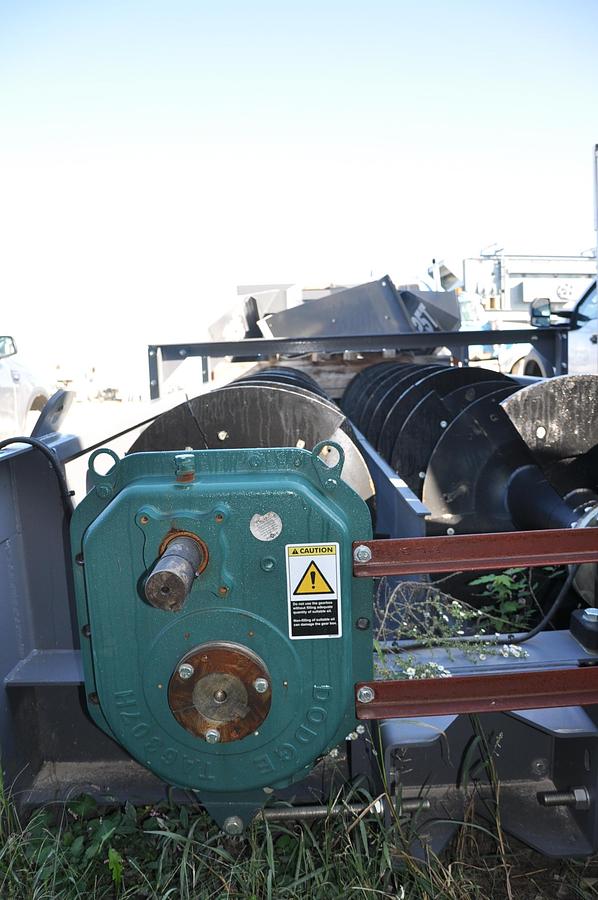

• Heavy-duty gearbox with oil-bath gear lubrication

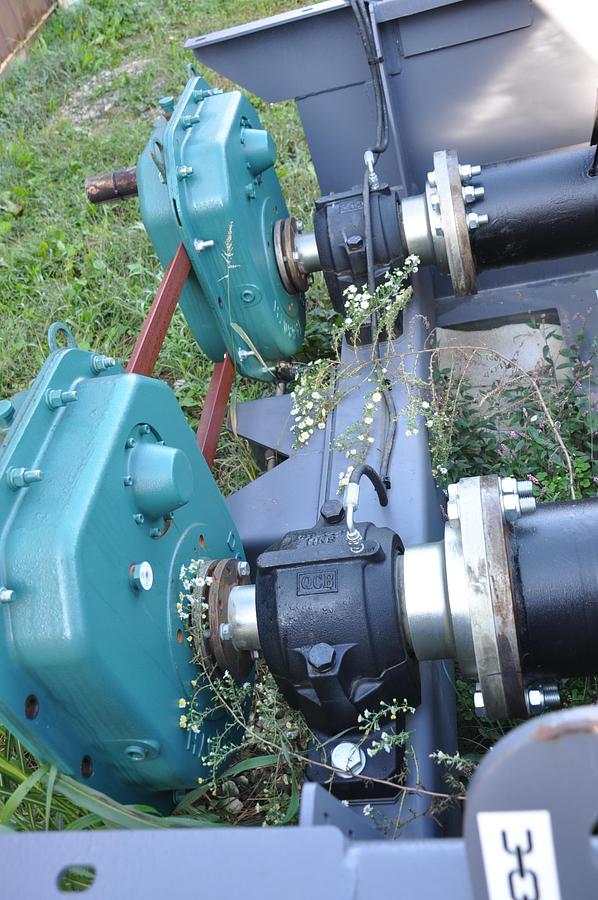

• Accessible lower outboard bearing assemblies
• Remote grease points for convenient maintenance
• Fully guarded belt drive and nip points
• Emergency stops on both sides
• Approximate empty weight of 25,500 pounds
• Optional electric control panel with conveyor starters

The 3625T can be incorporated into new or existing washing circuits for natural and manufactured sand applications. Its twin-screw arrangement, heavy-duty construction and accessible service points provide a straightforward solution for producers requiring reliable sand washing and fine material recovery.

Franklin Rock & Recycle is the exclusive distributor for sales and rentals of MWS (McCloskey Washing Systems) equipment in Indiana, Kentucky, Tennessee and Alabama. Franklin Rock & Recycle provides washing, classification and dewatering equipment, parts and service support throughout the Midwest and Mid-South.
