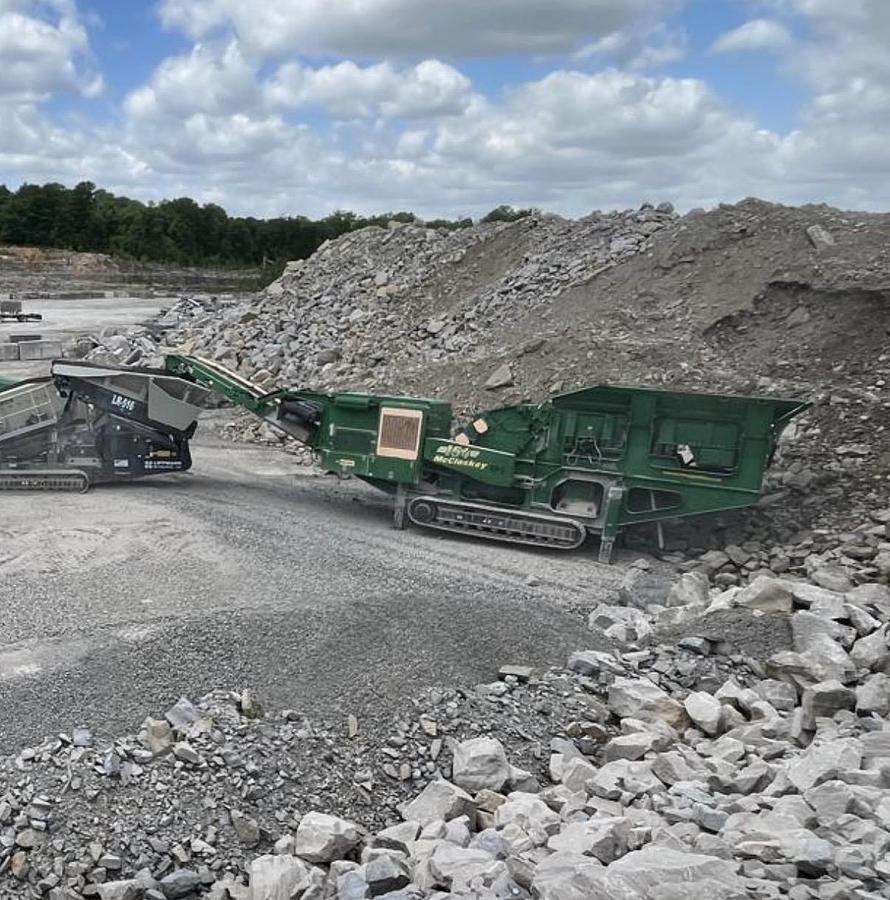

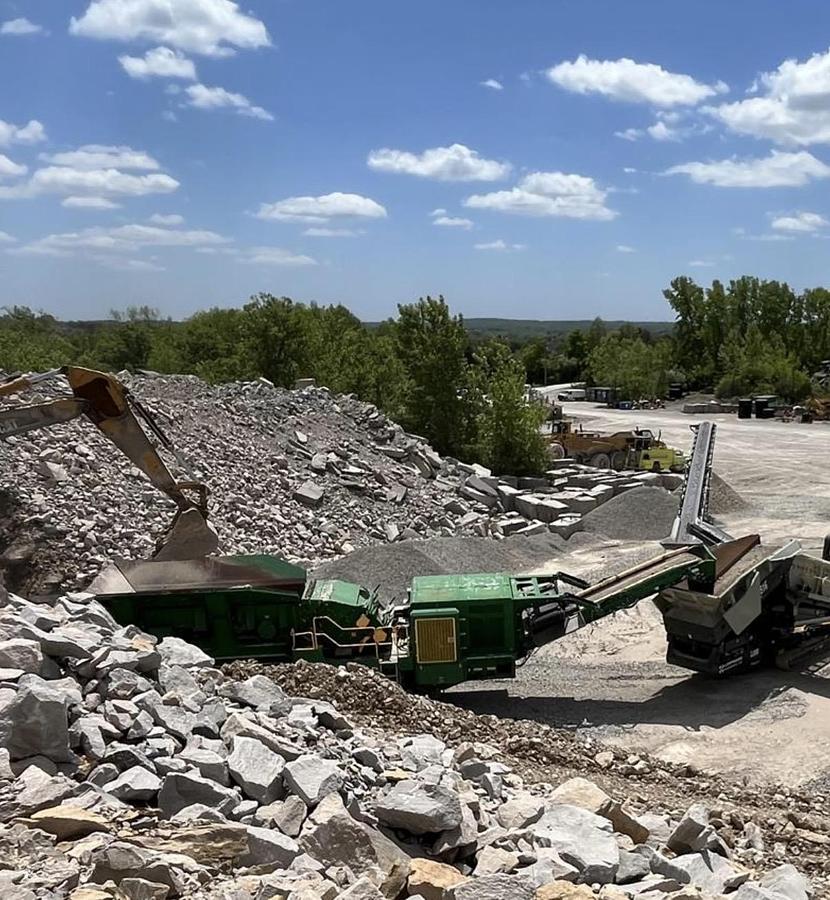

McCloskey I54 Impact Crusher Plant - Diesel Tier 3 CAT. 2019 3091 Engine Hours, 511 crushing hours (ran in light duty conveyor fed application). Good running condition.

McCloskey I54 Impact Crusher / I54V2 Hydraulic Drive Impact Crusher

The McCloskey I54 or I54V2 Impact Crusher is a heavy-duty, high-production tracked impact crusher designed for demanding quarry, aggregate, concrete, asphalt, and demolition recycling applications. Built around one of the largest impactors available in a mobile crushing plant, the I54 combines substantial horsepower, a large feed opening, and rugged McCloskey construction for serious production applications.

At the heart of the I54 is a massive 47" diameter × 53" wide impactor. The crusher features an exceptionally large 53.5" × 37" internal feed opening and is designed to accept feed material up to approximately 24 inches, allowing large material to move efficiently into the crushing chamber. I54v2 technical spec

Power is supplied by a 430 HP Caterpillar C13 diesel engine. This generation of the I54 uses a hydraulic crusher drive through V-belts, with crusher speed adjustable from approximately 530 to 700 RPM. I54v2 technical spec

The large 8.9 yd³ hopper features heavy-duty 8 mm Hardox sides, providing substantial feed capacity and durability for demanding applications. The machine's feeding system is designed to maintain consistent material flow into the impactor. I54v2 technical spec

A vibrating underpan beneath the crusher discharge helps move crushed material efficiently away from the impactor and onto the discharge system. The 48" main conveyor provides substantial capacity and features adjustable angle and quick-release capability. I54v2 technical spec I54v2 technical spec

The I54's heavy-duty fabricated I-beam chassis and open chassis design provide excellent access around the crusher for routine service and maintenance. Integrated hydraulic folding hopper and stockpiling conveyors contribute to fast setup and make the machine practical for contractors who regularly move between jobsites. I54v2 technical spec

An overband magnet is available for removing reinforcing steel and other ferrous material from the crushed product, an especially useful feature in concrete and demolition recycling applications. I54v2 technical spec

Like other McCloskey crusher plants, the I54 has minimal reliance on complex electronics. Its straightforward mechanical and hydraulic design makes problems easier for your mechanic to find and diagnose, helping reduce downtime.
