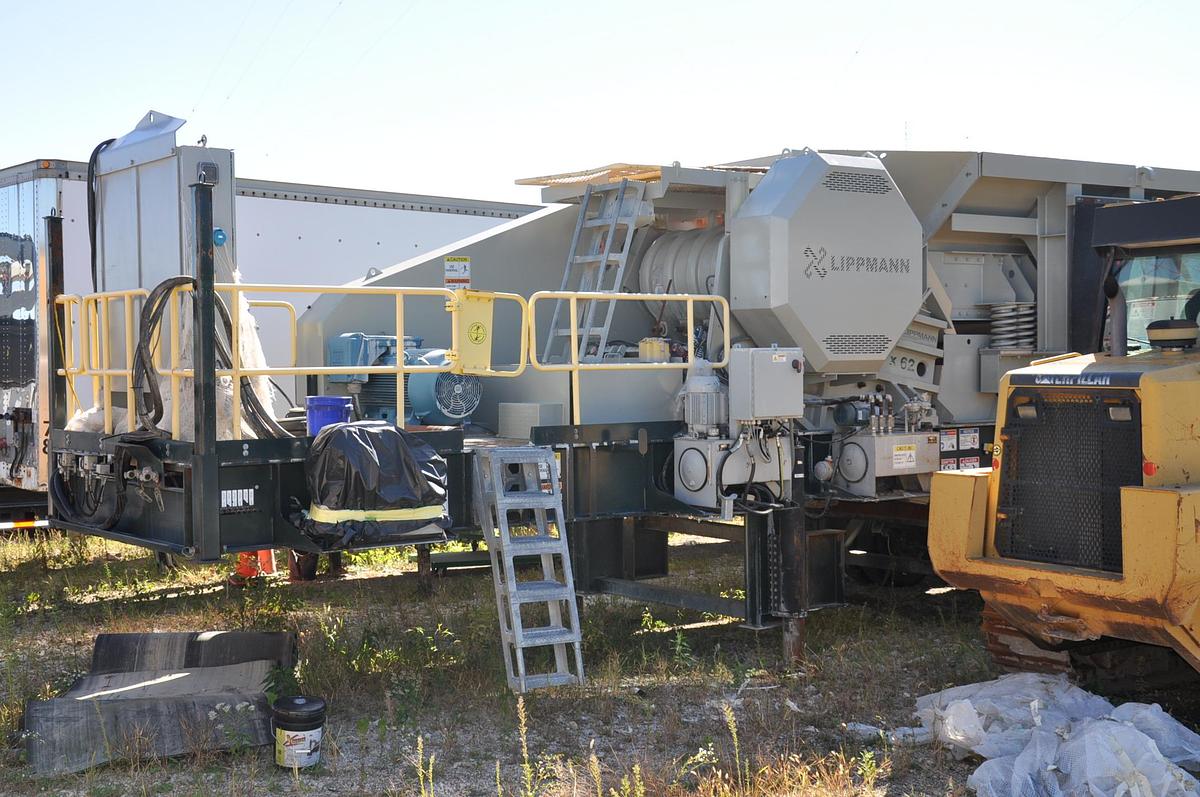

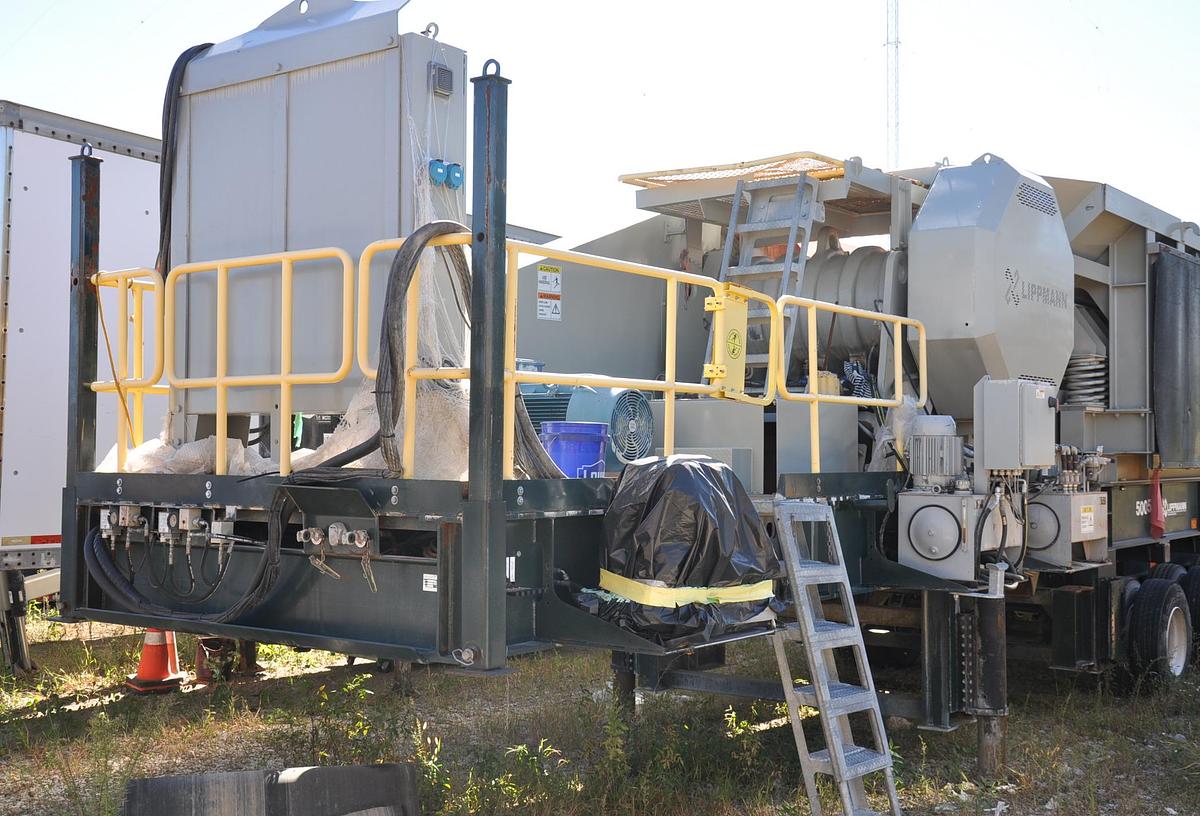

Lippmann 30" x 62" 3062J Jaw Crushing Plant with HD Mag Conveyor

Light Used Lippmann Milwaukee 3062J Heavy Duty Electric Portable Jaw Plant

The American-made Lippmann-Milwaukee 3062J is the industry standard for demolition and concrete crushing. Its heavy-duty construction is built for demanding concrete recycling applications, while the hydraulic toggle system releases for tramp iron and other uncrushables, helping protect the crusher from damage.

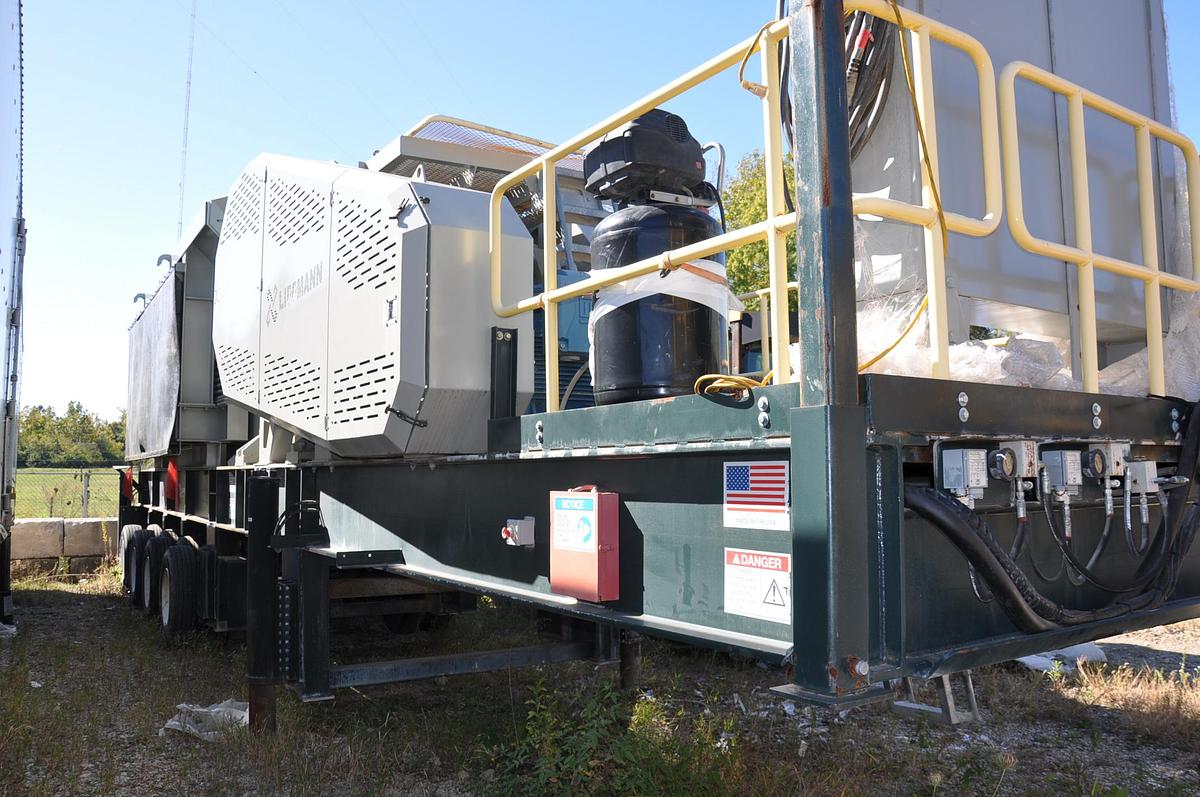

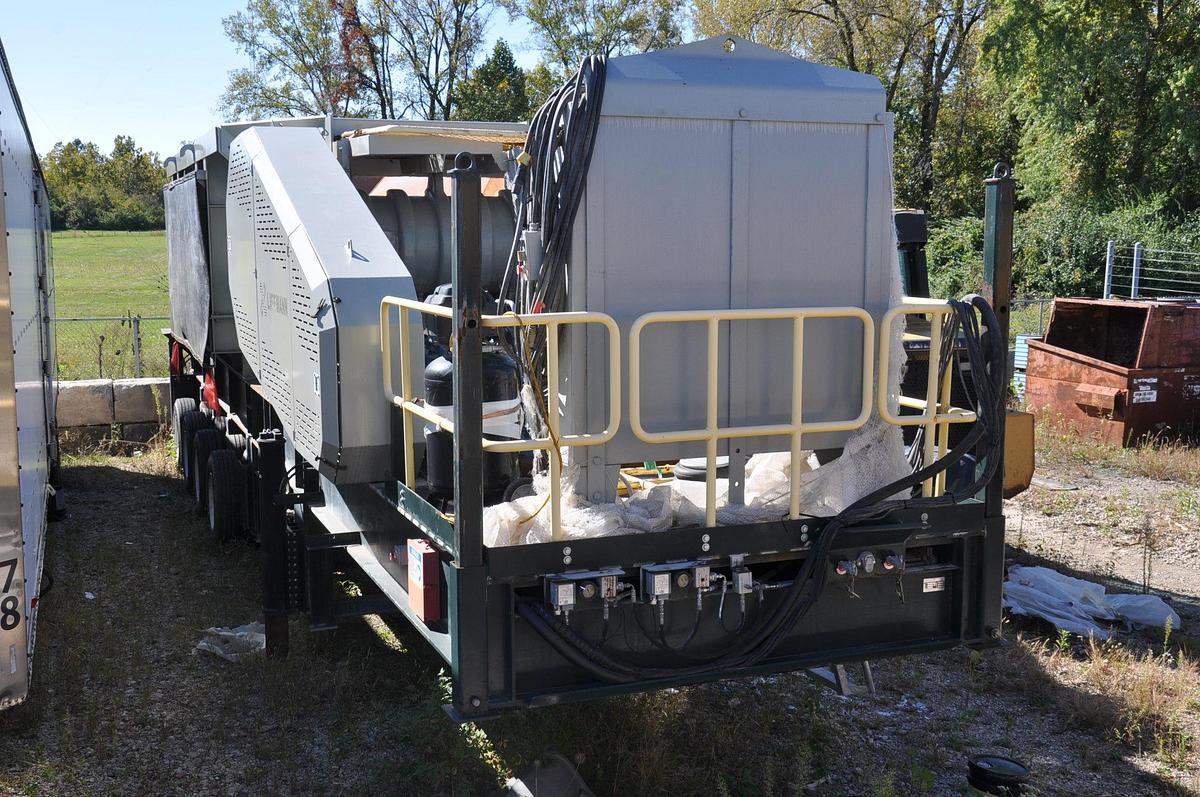

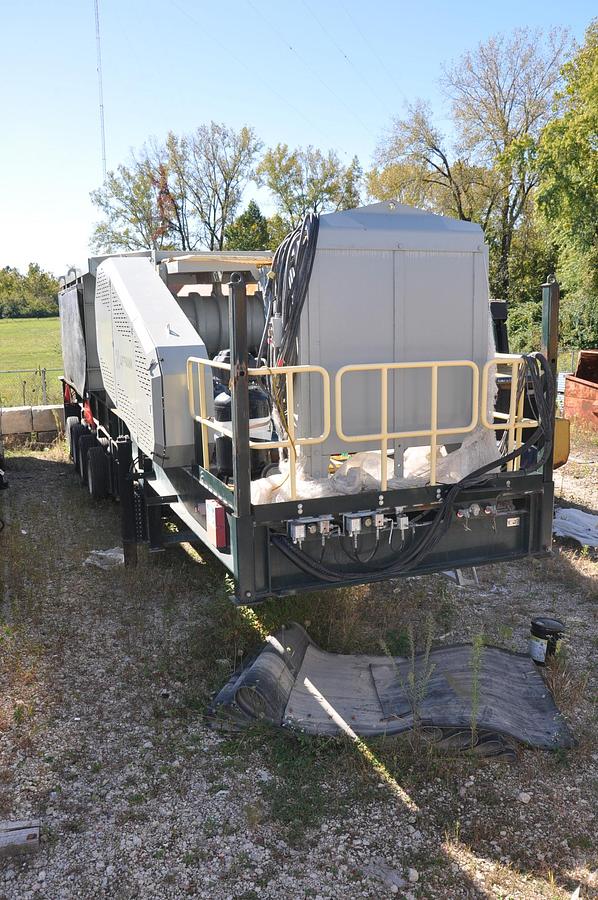

Portable Plant and Chassis

Welded I-beam steel truck frame with structural cross members, support legs and kingpin

Quad axle with suspension, air brakes, taillights, reflectors, directional signals, mud flaps and radial tires

Removable feeder module with welded structural steel skid, feeder supports and drive assembly

Flared AR-lined dump hopper

Bolted feeder module connection to the main chassis for easy removal

AR-lined grizzly bypass chute

AR-lined under-crusher discharge chute

Main platform around the crusher and motor with ladder access from grade, diamond plate flooring, toe kick, tubular handrails and safety gate

Elevated operator’s platform with railing and ladder access from the main platform

Crusher, feeder and conveyor drive guards, plus conveyor guarding

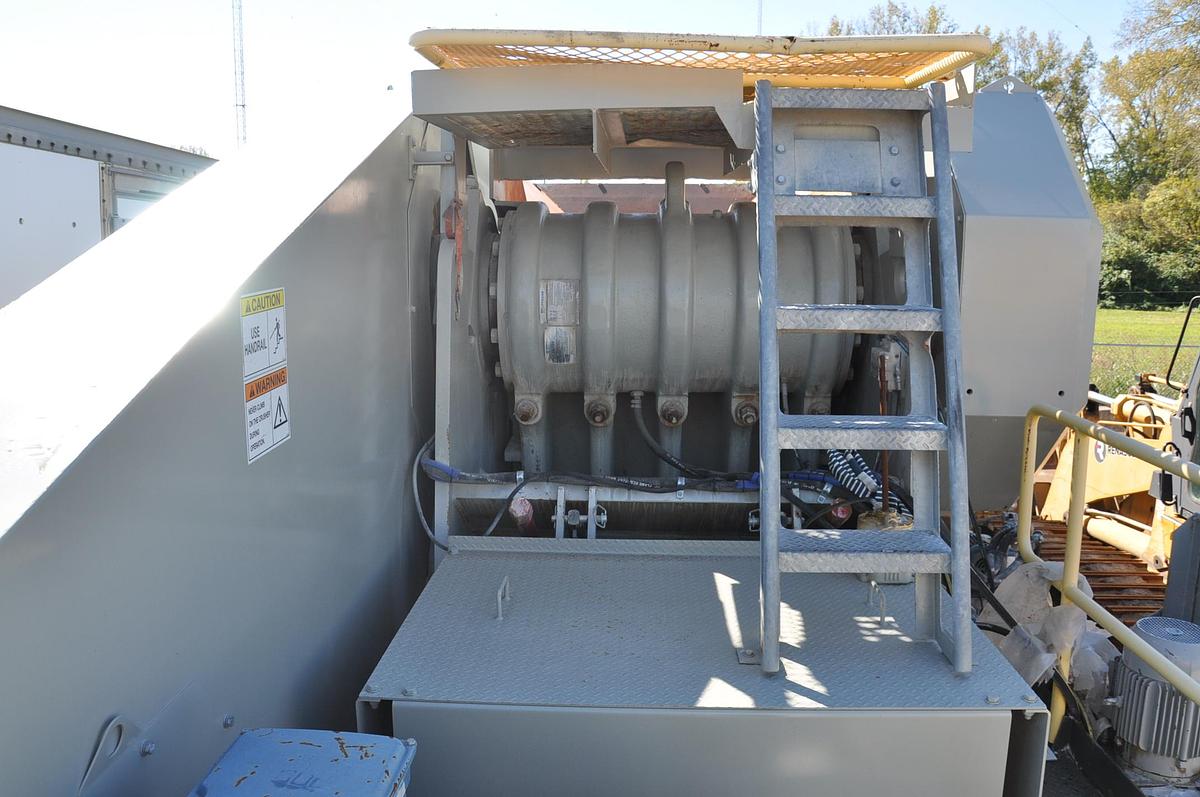

3062J 30 by 62 Inch Heavy Duty Jaw Crusher

Steel frame, stress relieved after welding and before machining

One-piece steel pitman

Heat-treated forged alloy steel eccentric shaft

Oversized tapered roller bearings in the pitman

Spherical roller bearings in the main frame

Replaceable toe protector

Swing jaw service cylinder and pin

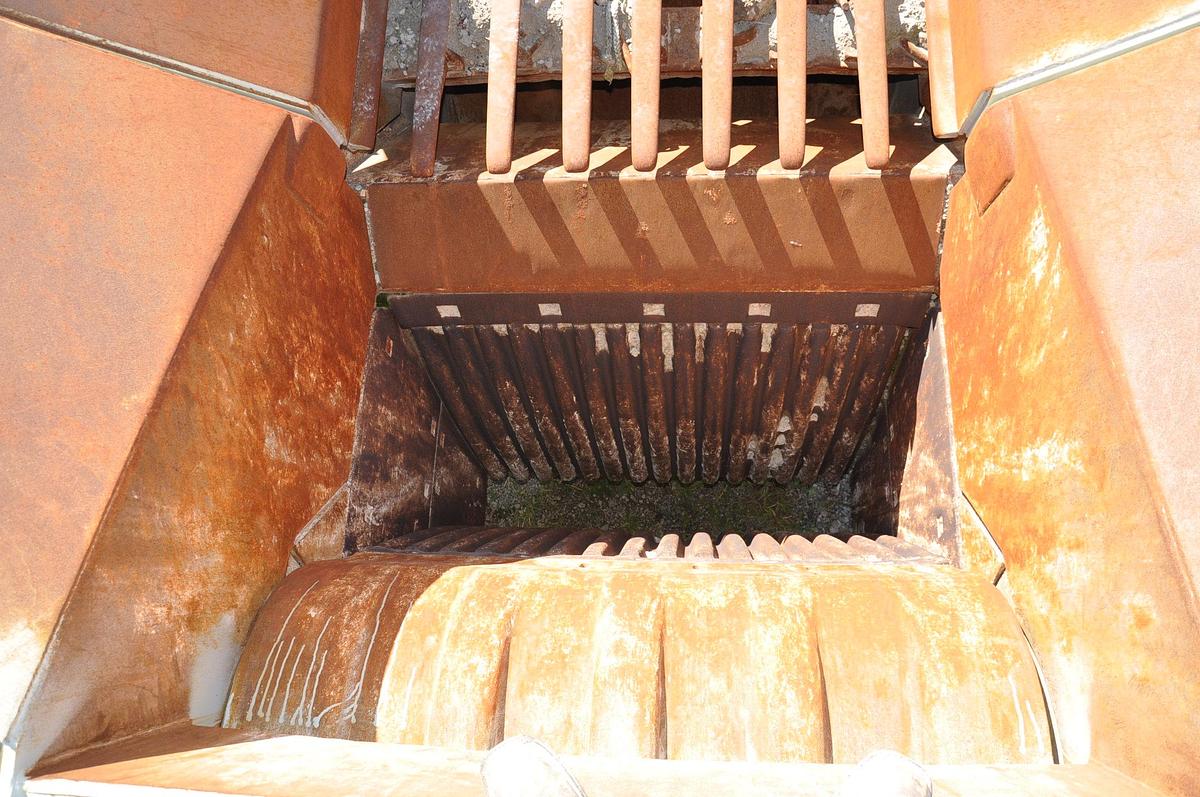

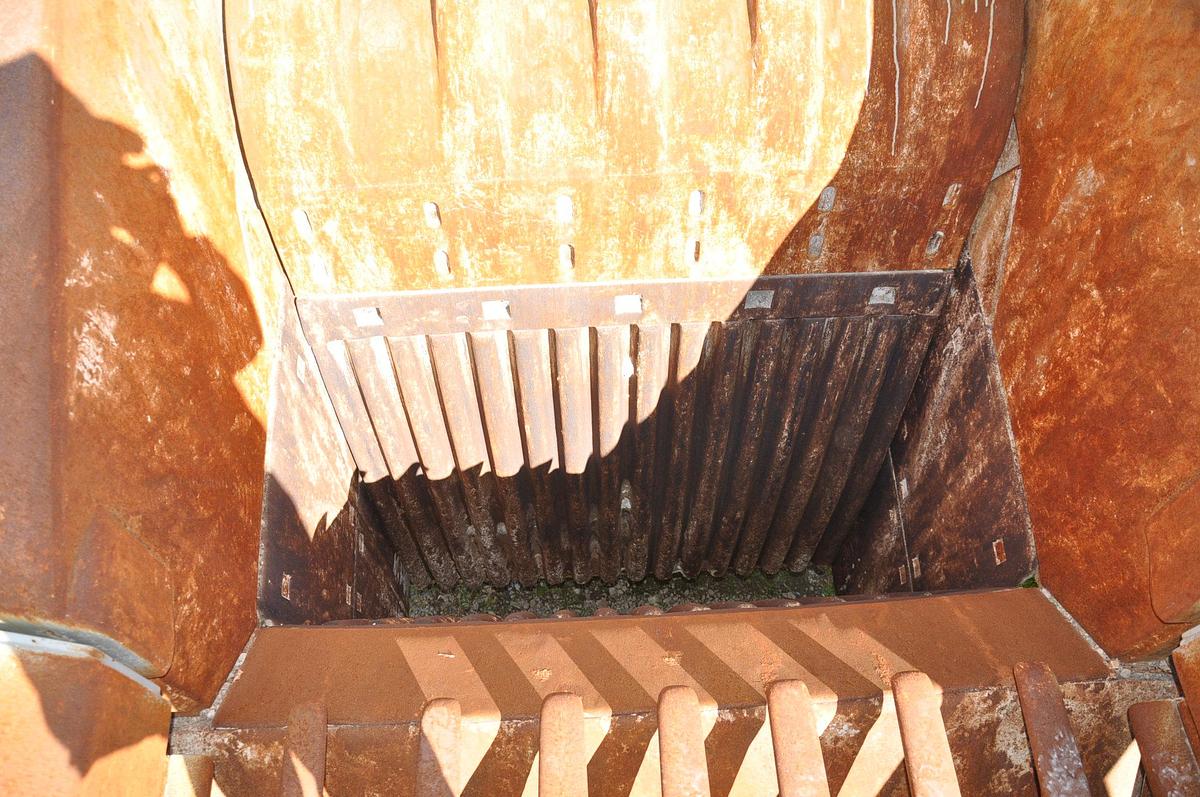

Reversible manganese steel jaw dies and extensions

Cast manganese cheek plates

Hydraulic toggle adjustment with hydraulic relief for tramp iron and other uncrushables

Two heavy-duty flywheels, one fully grooved for V-belts

Automatic lubrication system

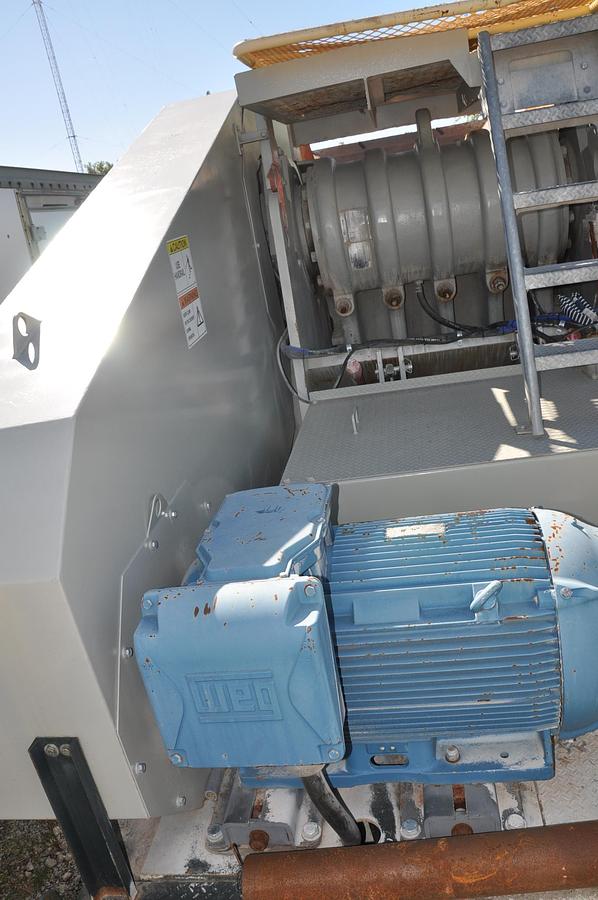

200 HP, 1,200 RPM TEFC WEG crusher-duty electric motor

V-belt drive with sheaves and bushings

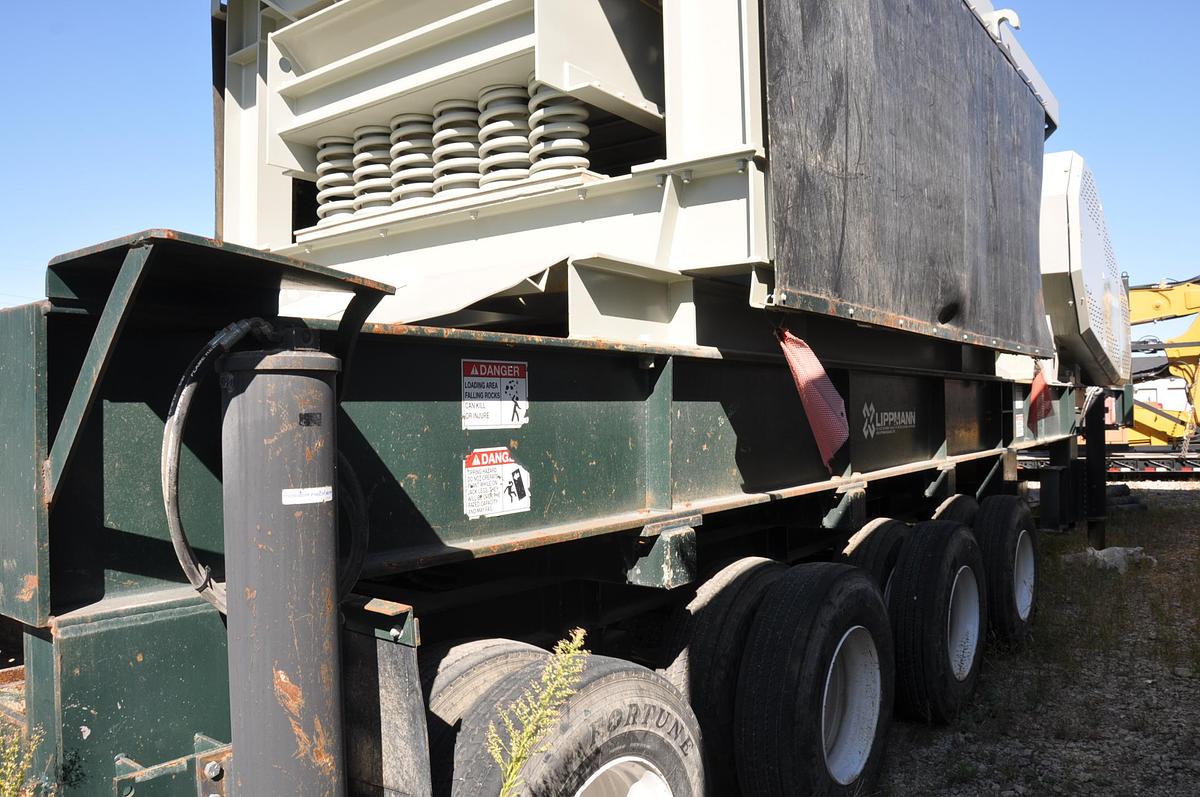

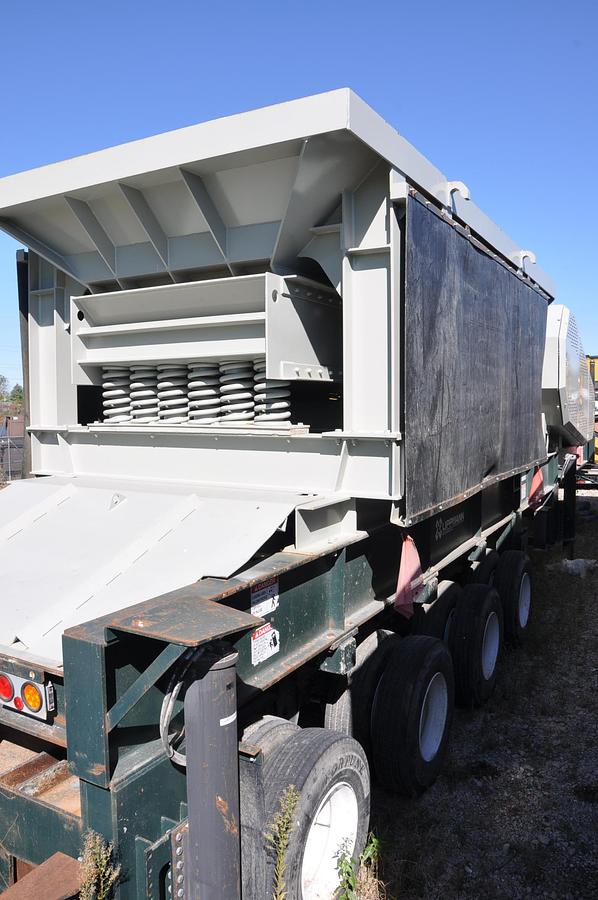

6218F 62 Inch by 18 Foot Horizontal Vibrating Grizzly Feeder

Welded structural steel feeder frame

Weld-in AR liners on feeder pan and side plates

4-foot grizzly section with adjustable AR bars; nominal openings specified by the customer

LLH-22 vibrating mechanism with two full-length, self-counterweighted solid steel shafts

Helical gears

Four 130 mm spherical roller bearings with oil splash lubrication

Vibrating mechanism enclosed in a dustproof housing

40 HP, 1,800 RPM TEFC WEG electric motor

V-belt drive with sheaves, bushings and pivoted motor base

Included Options

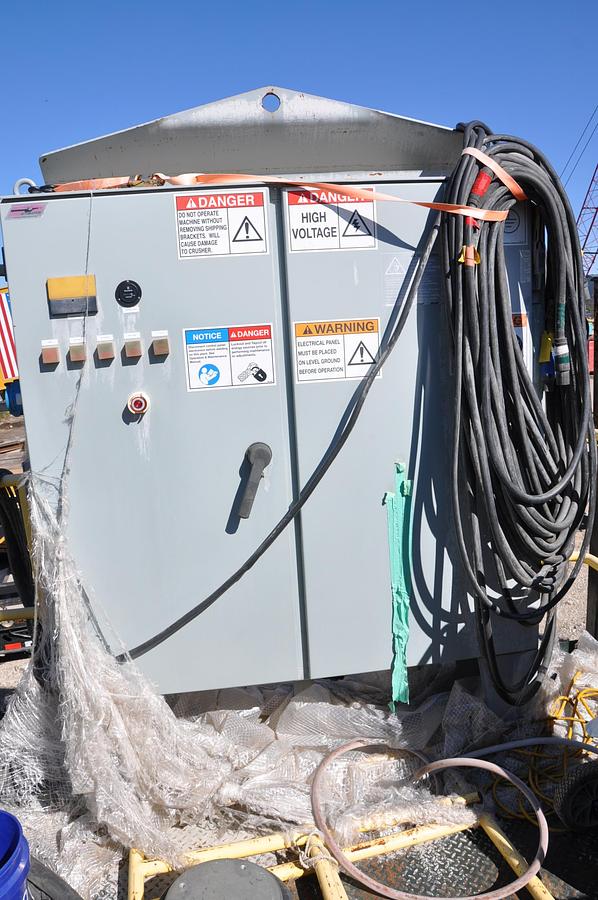

NEMA 12 motor control center with dust-tight enclosure

Four hydraulic leveling legs

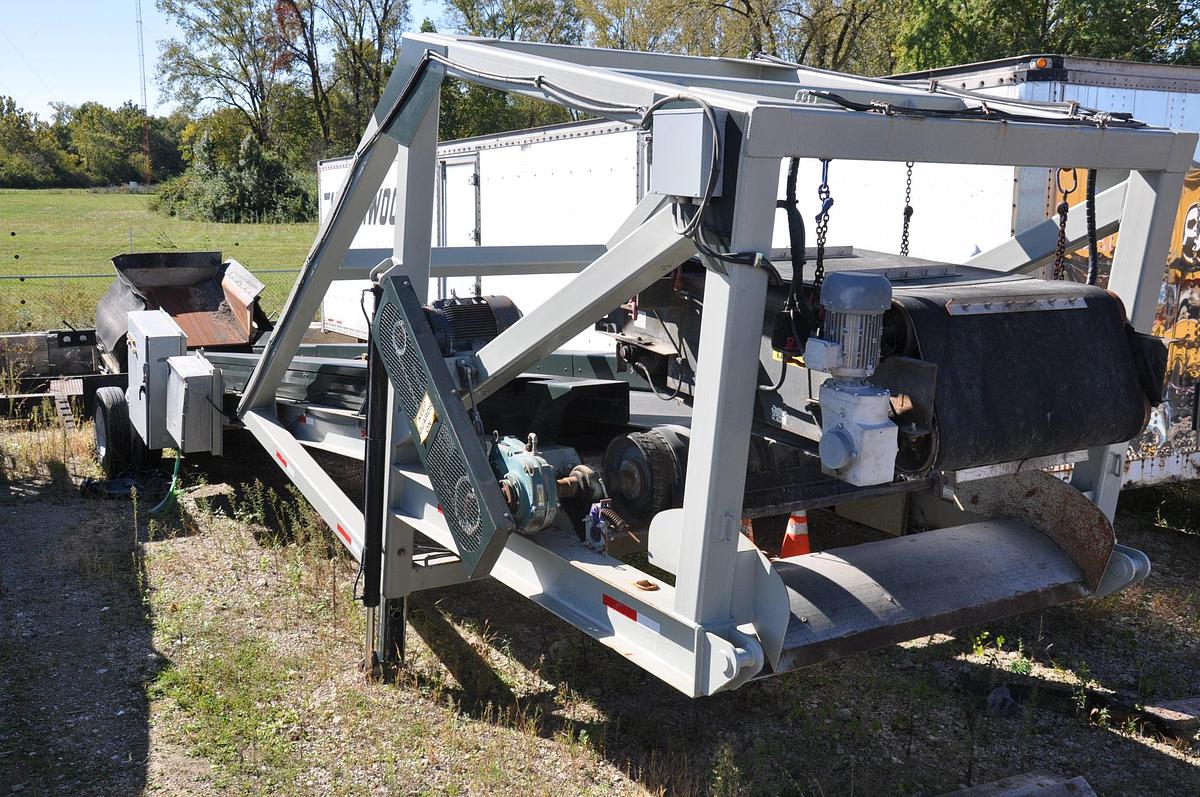

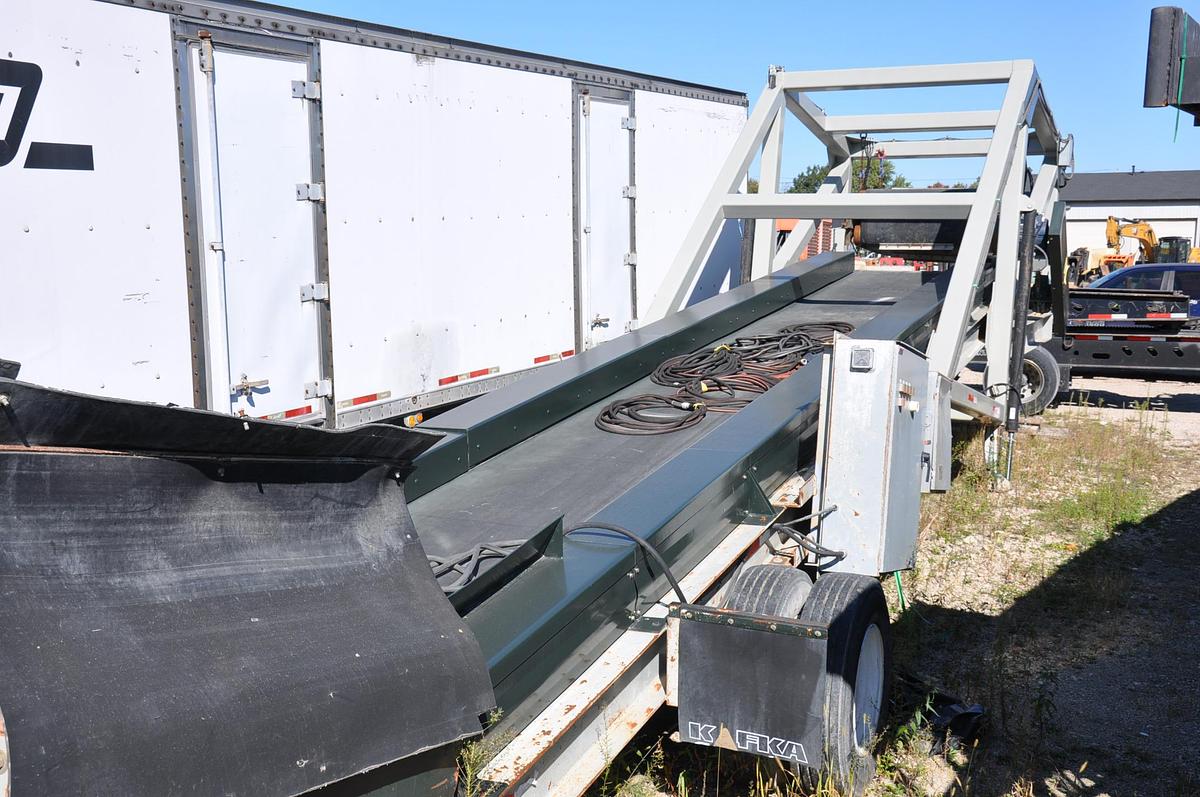

Heavy Duty Custom Road Portable Crusher Discharge Magnet Conveyor

Custom-built 60" × 42' free-standing conveyor for side discharge from beneath the jaw crusher.

25 HP electric motor

No. 6 gear reducer

18-inch-diameter head pulley with shaft and bearings

Sheave, bushing and V-belts

12-inch-diameter tail pulley with shaft, bearings and take-ups

60-inch carrying and return idlers

60-inch, 4-ply conveyor belt with ¼-inch top cover

New 48" × 78" under-crusher vibratory pan feeder

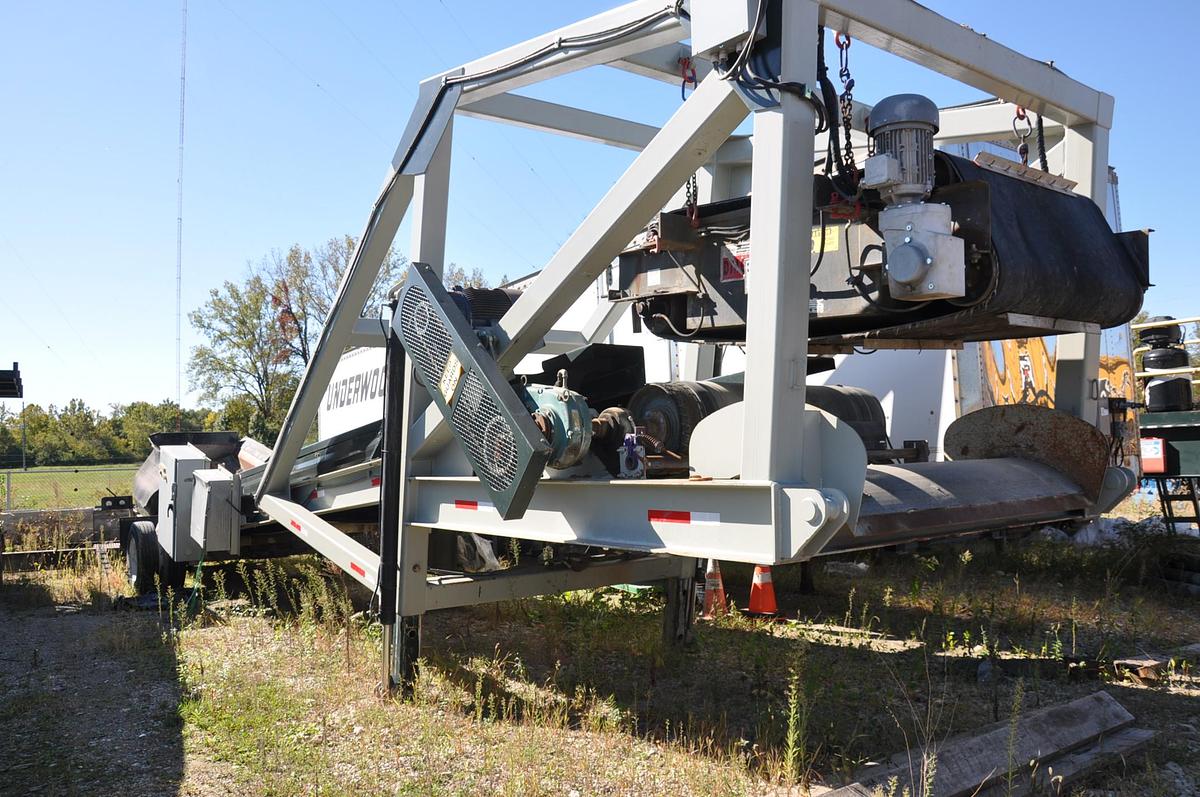

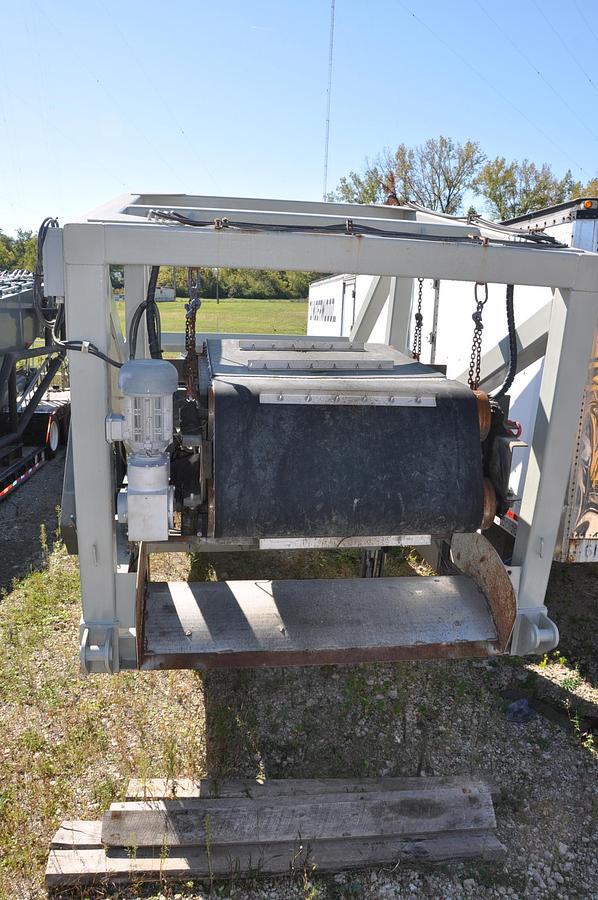

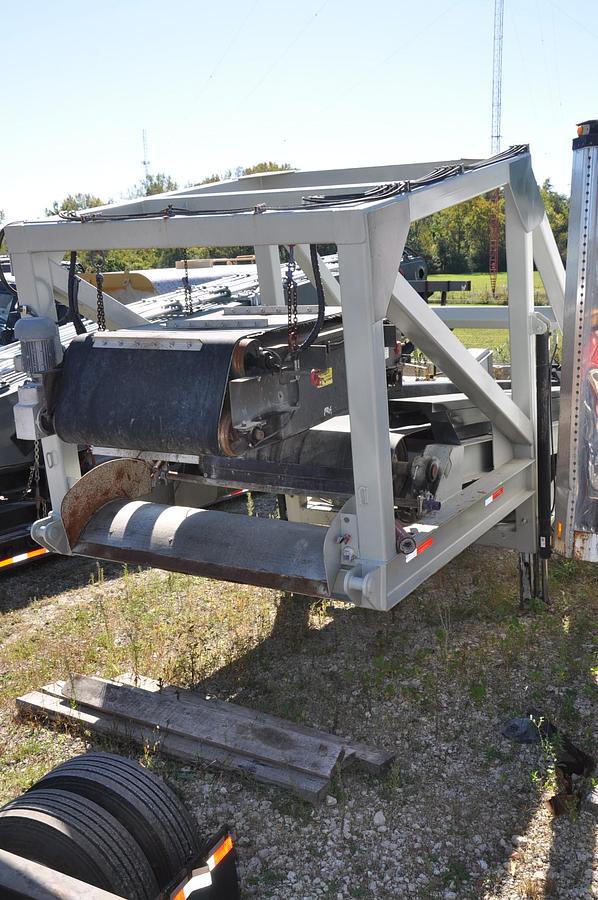

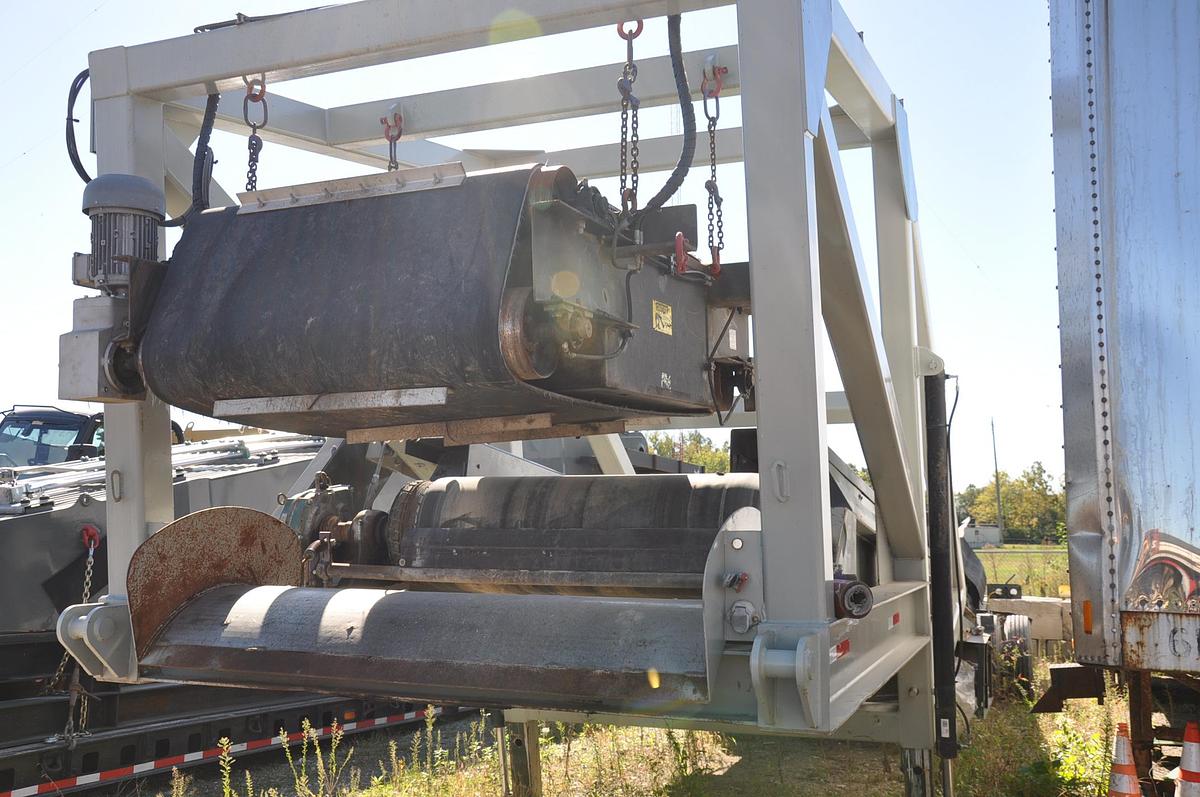

Magnet framework with heavy-duty Dings 45CR or 55CR electromagnet and stainless steel belt

Two heavy-duty hydraulic cylinders to lift the unit into operating position

Gas-powered hydraulic power unit with valve

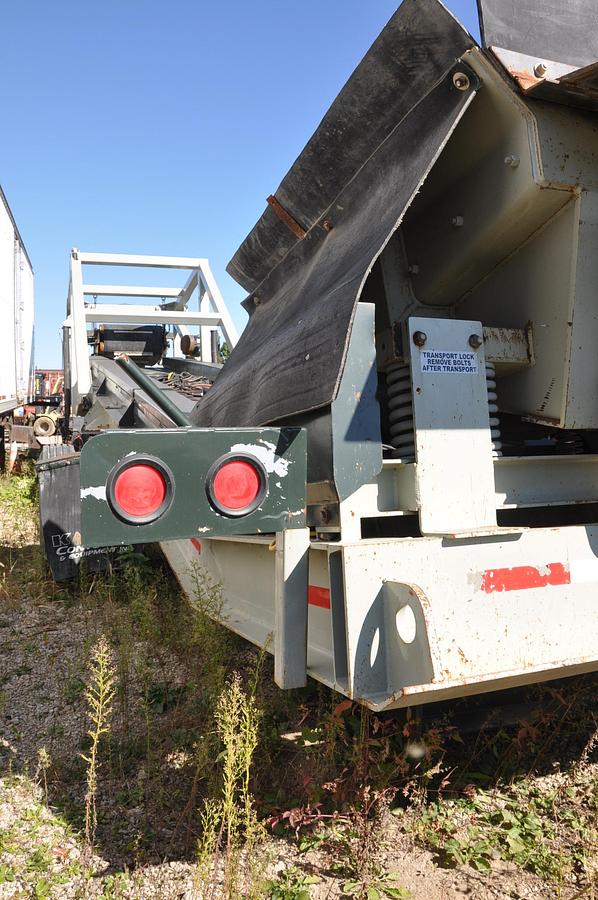

Heavy-duty road-portable single-axle chassis with lights and brakes

Electric starters in a NEMA enclosure, mounted and wired to the plant

Primed and painted
