2026 EAGLE CRUSHER ULTRAMAX 1400-45 Open Circuit Portable

Eagle Crusher UltraMax 1400-45 OC Portable Impact Crusher Plant

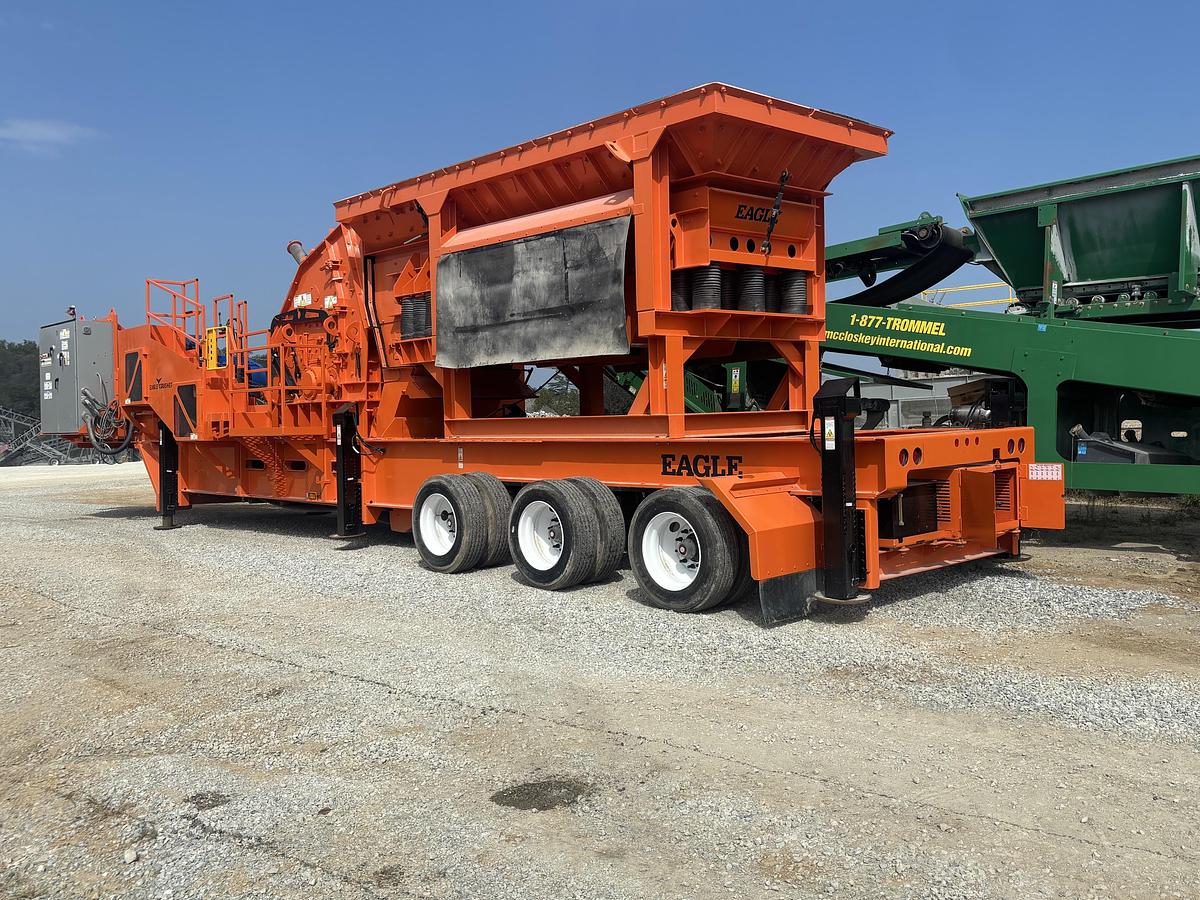

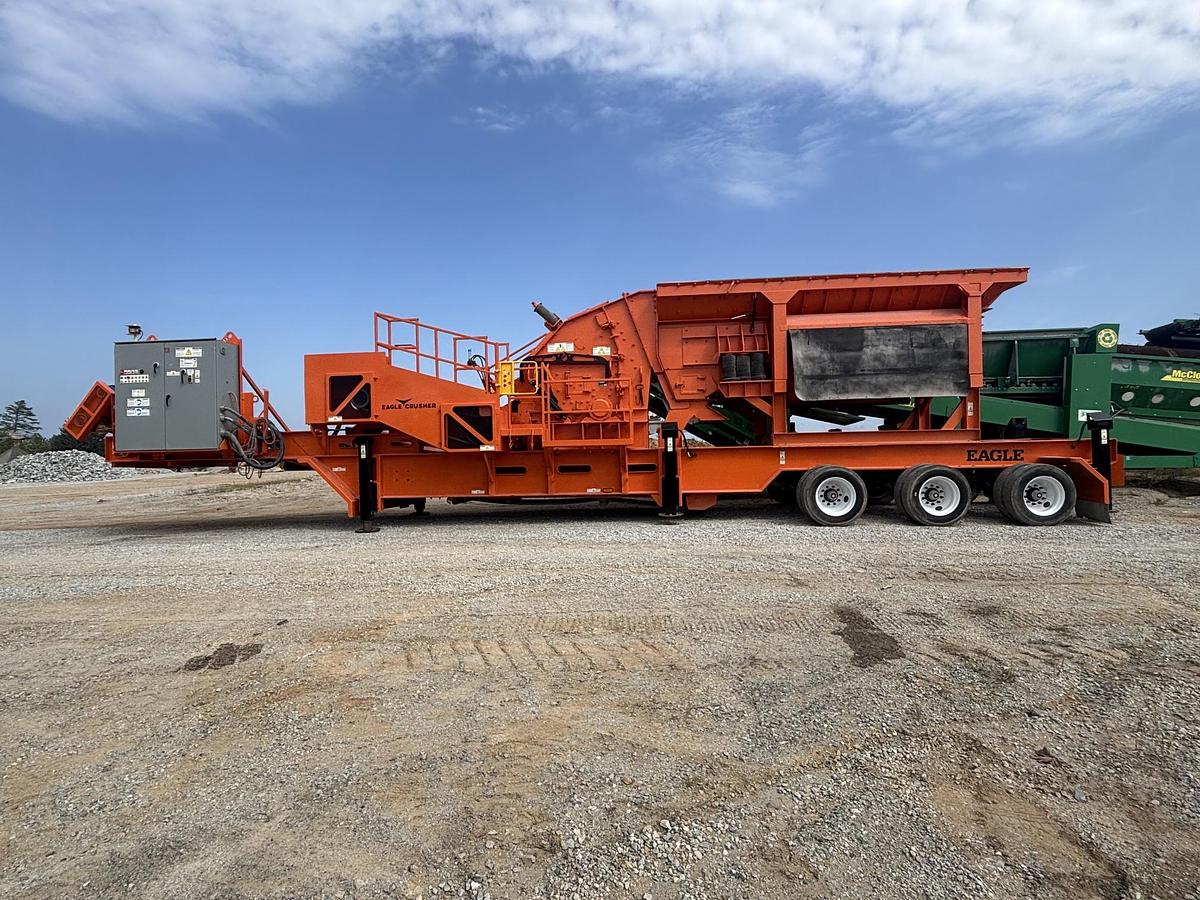

The Eagle Crusher UltraMax 1400-45 OC is a heavy-duty, high-production wheeled portable impact crushing plant designed for large-scale crushed stone, aggregates, concrete recycling, asphalt, and other demanding crushing applications. Built around the large UltraMax UM-45 impact crusher, the 1400-45 OC combines the crusher, feed hopper, vibrating grizzly feeder, and discharge conveyor into a highly portable open-circuit crushing plant.

Heavy-duty UltraMax UM-45 horizontal shaft impact crusher

Large 57" × 35" crusher feed opening

Massive 50" diameter × 57" wide, solid-steel three-bar sculptured rotor

Heavy 17,600 lb. rotor provides substantial stored energy through the crushing cycle

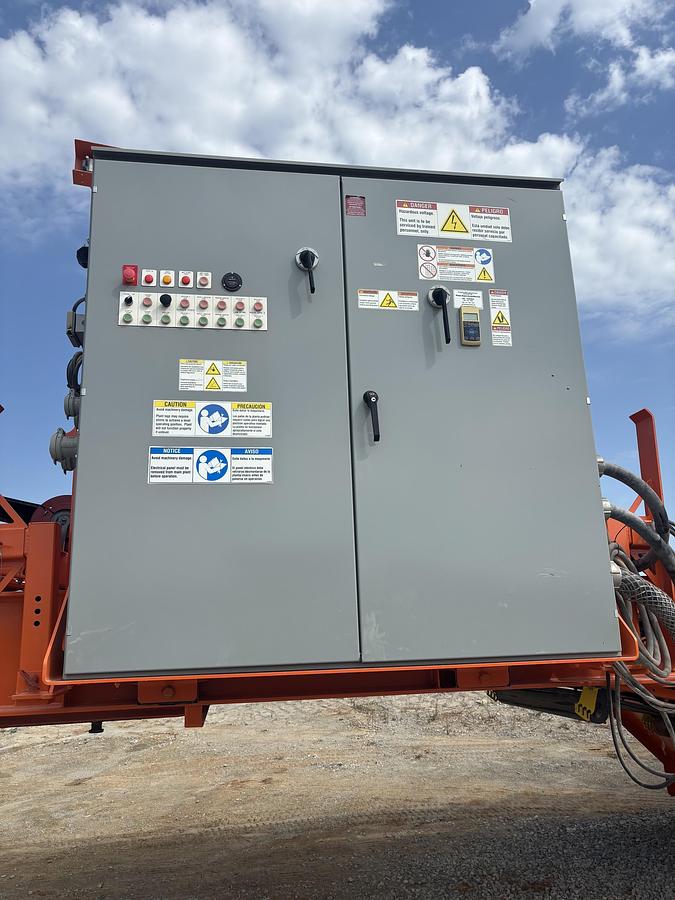

3-phase electric drive provides efficient electric power to the crusher and plant components

Approximately 400 HP / 298 kW crusher drive power

Production can exceed 400 tons per hour, depending primarily on crusher curtain settings, as well as feed material and operating conditions

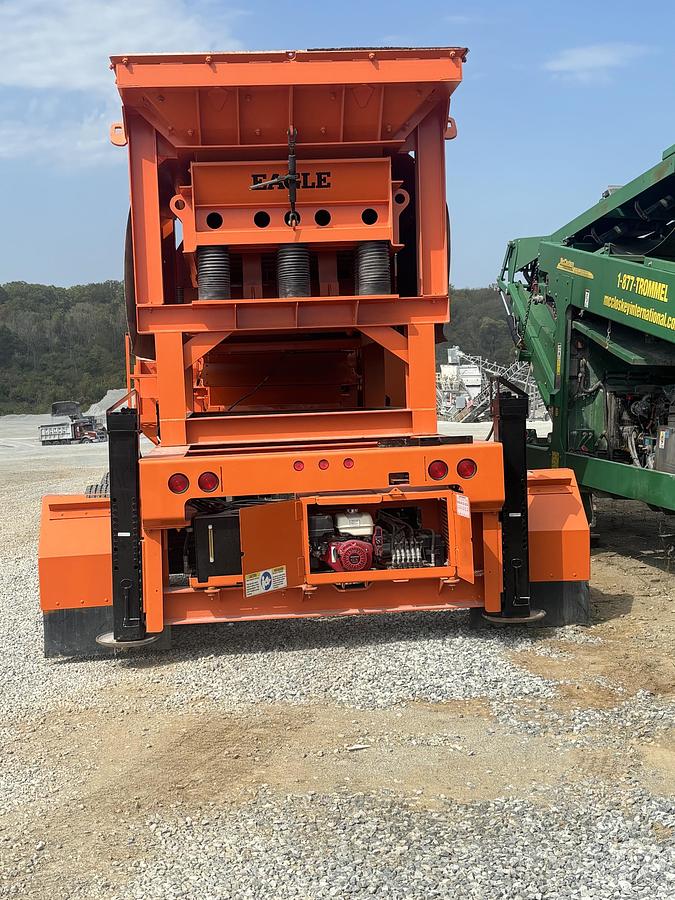

Large 19 cubic yard feed hopper for high-production loading

Heavy-duty 18' × 56" vibrating feeder provides controlled material flow to the impact crusher

Two-step grizzly deck removes fines ahead of the crusher, reducing unnecessary wear and improving crushing efficiency

Grizzly bypass arrangement allows material passing through the grizzly to bypass the impactor

Heavy-duty primary and secondary curtain design with hydraulic-assisted curtain adjustment

Three-bar rotor design helps produce a uniform, cubical finished product with high reduction ratios

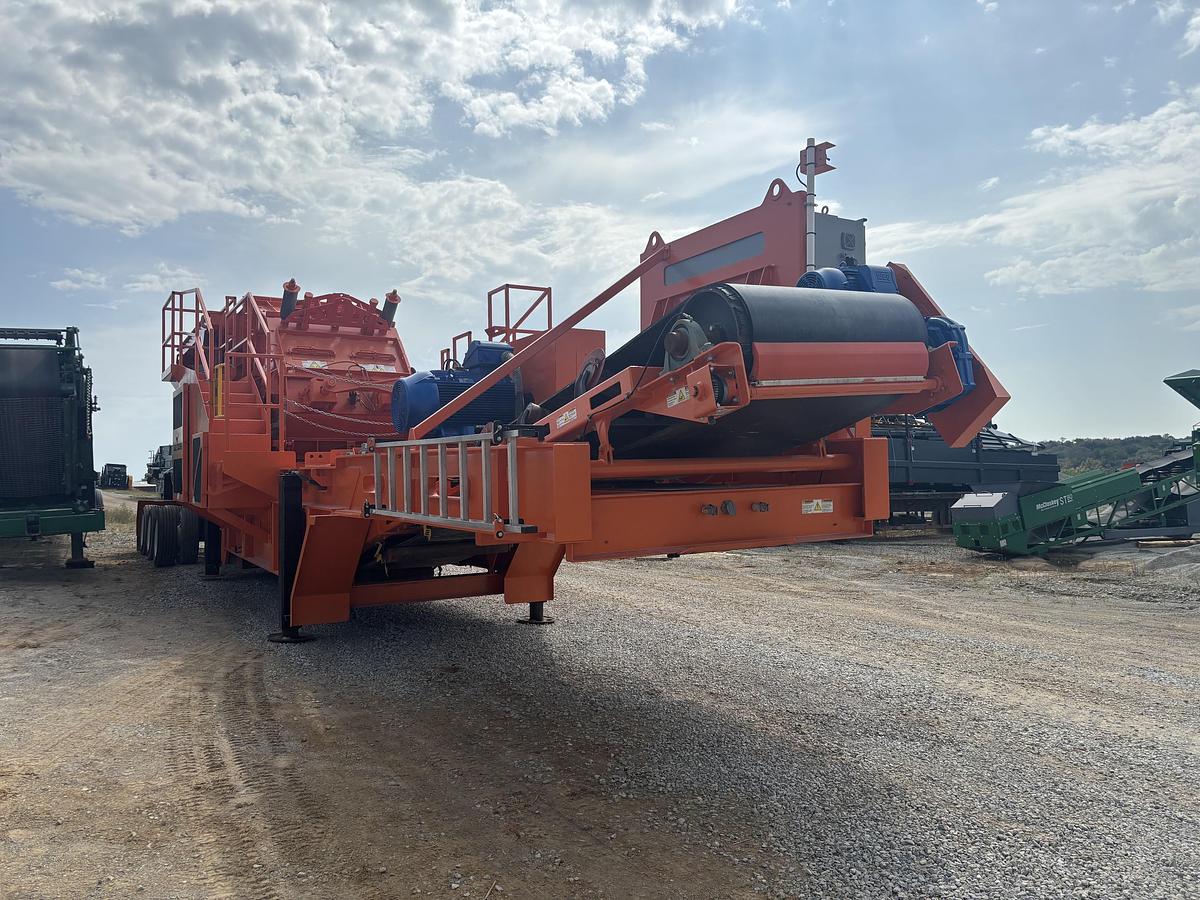

42" wide front-discharge conveyor carries crushed material forward from the impactor for stockpiling or feeding downstream screening and conveying equipment

Variable Frequency Drive (VFD) feeder control allows material flow into the impactor to be regulated for changing operating conditions

Wireless remote control provides convenient control of key plant functions

Hydraulic lift and leveling system simplifies setup and teardown at the jobsite

Wheeled portable chassis provides mobility between quarry, recycling, and contract crushing jobs

American-made heavy-duty construction designed for high-production crushing and recycling applications

At the heart of the Eagle 1400-45 OC is the UltraMax UM-45 impactor and its massive three-bar solid-steel rotor. At 50" × 57" and approximately 17,600 lbs., the rotor provides the mass and stored energy needed for high-production crushing, while the large 57" × 35" feed opening allows the crusher to handle substantial feed sizes. With production capable of exceeding 400 tons per hour depending primarily on curtain settings, the 1400-45 OC is particularly well suited for high-production crushed stone operations, aggregates producers, concrete and asphalt recycling, and contract crushing.

The open-circuit configuration provides flexibility for a wide range of crushing spreads. Crushed material exits the impactor on the 42" front-discharge conveyor, where it can be stockpiled as crusher-run material or transferred directly to downstream screening and conveying equipment for additional sizing and finished-product production. The 3-phase electric drive makes the plant especially well suited for operations with available utility power or generator-based electrical systems.
