2025 LIPPMANN 5165 LS

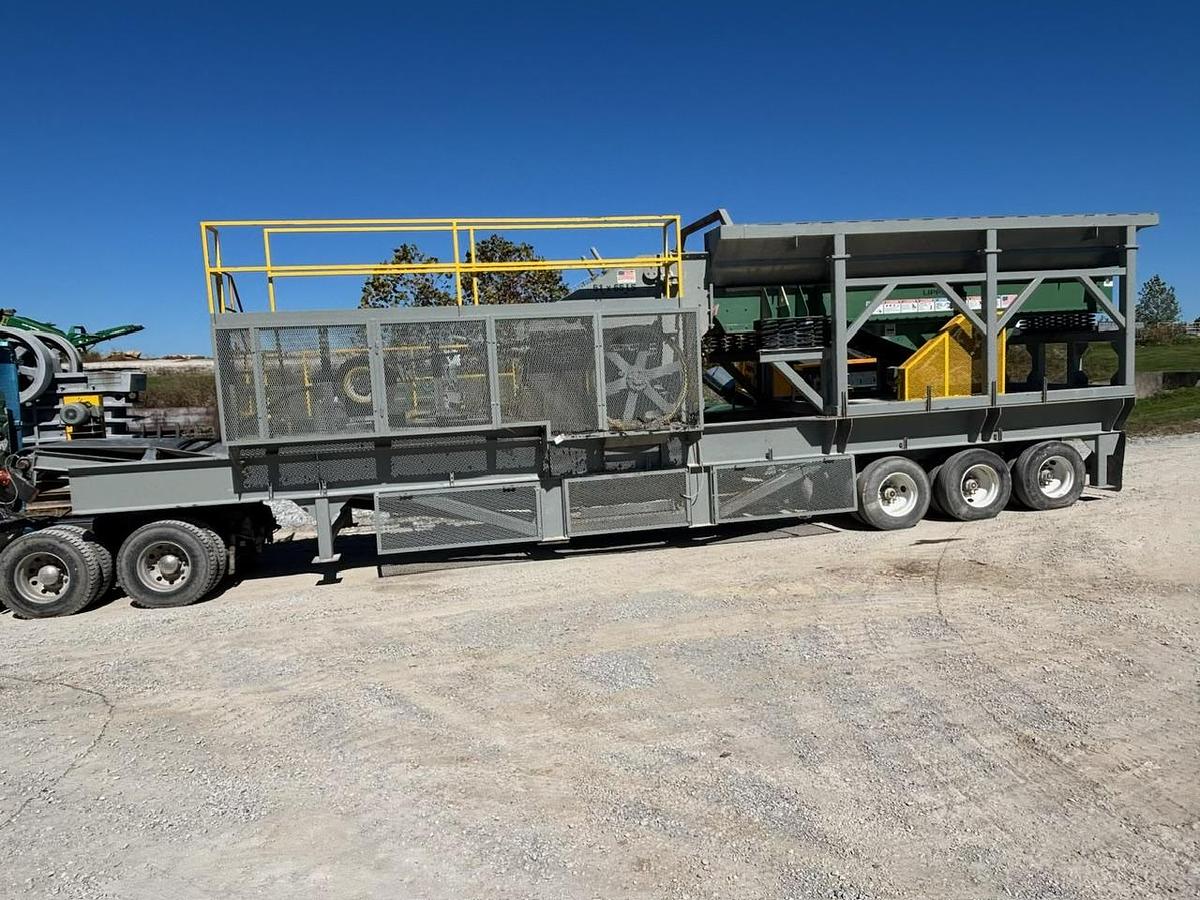

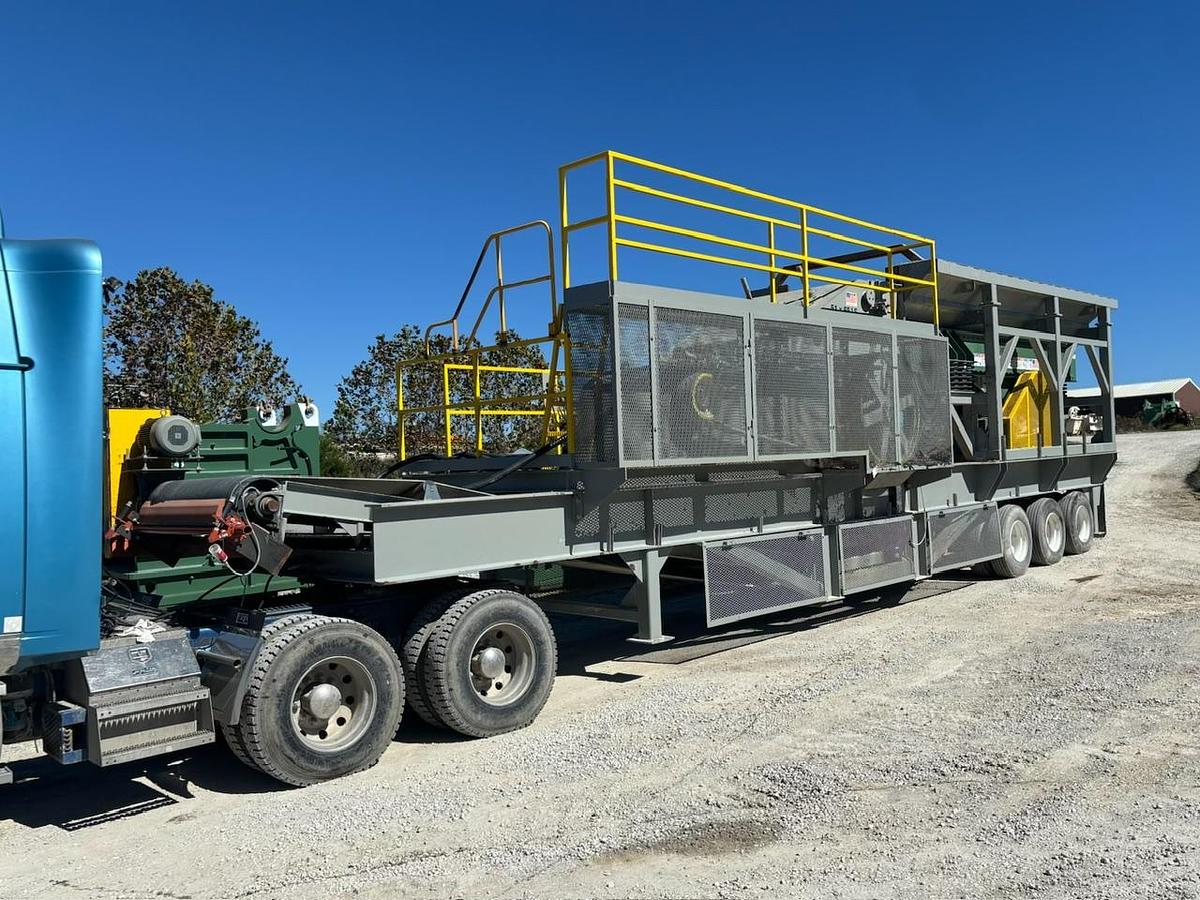

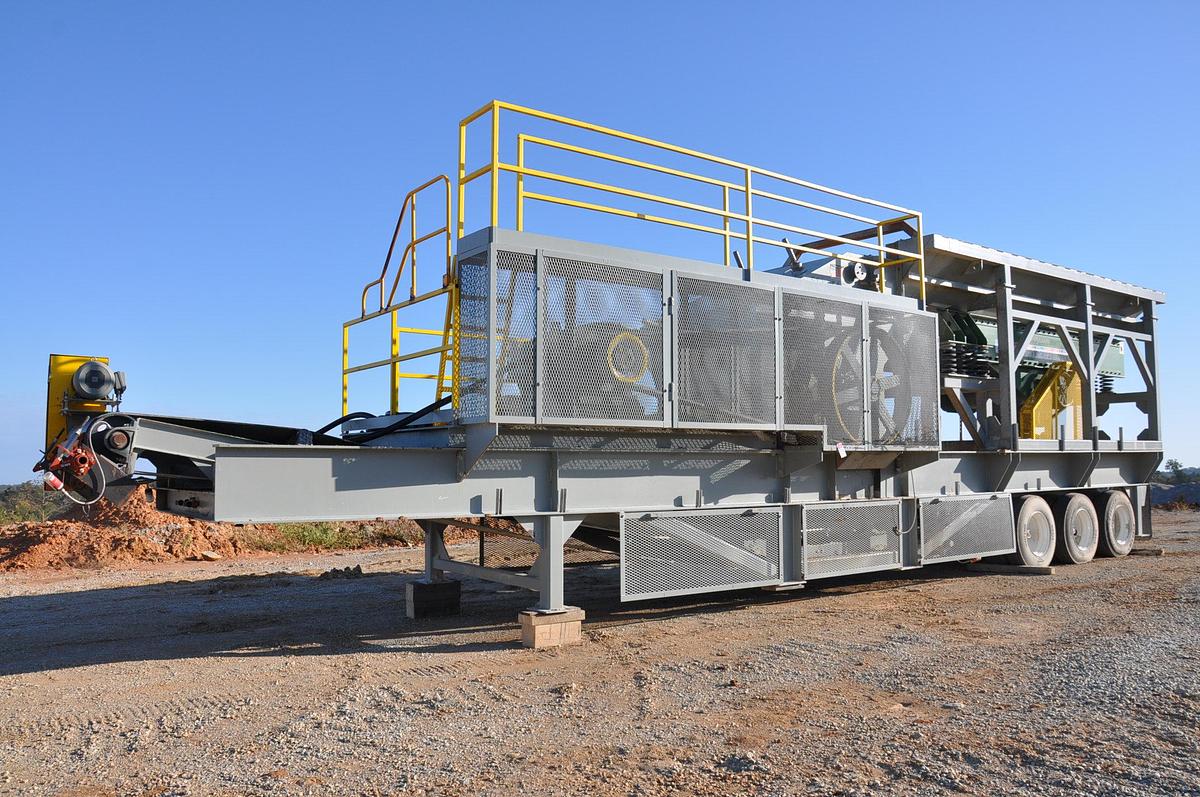

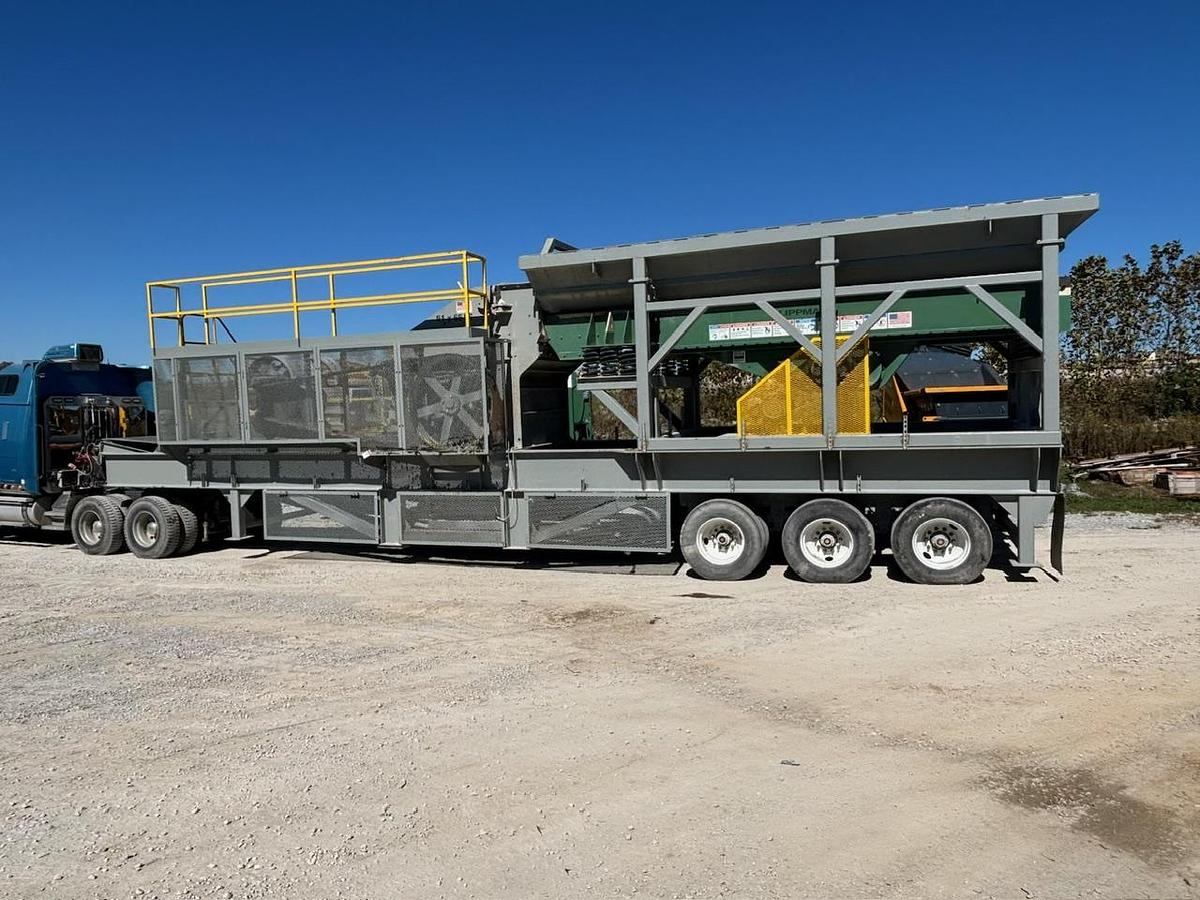

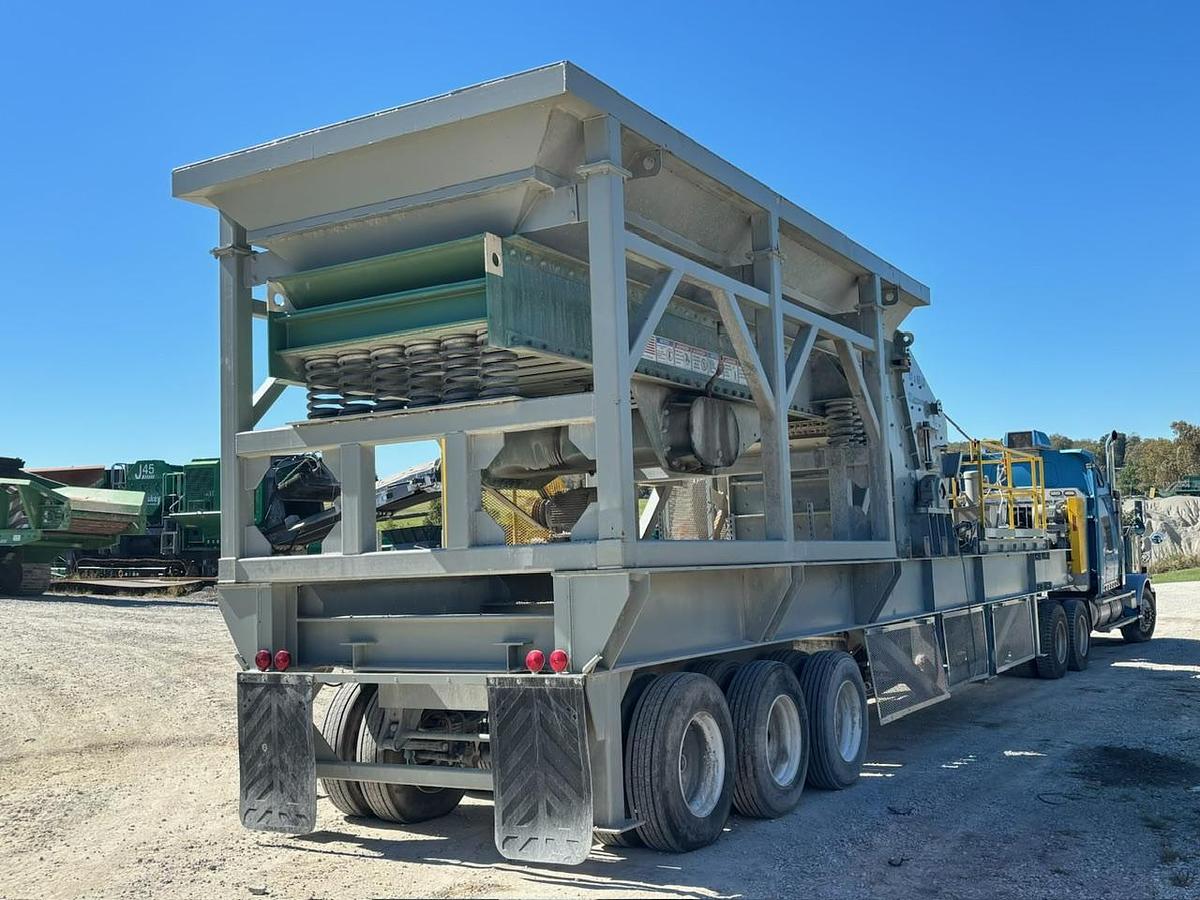

Lippmann 5165LS Portable Secondary Impact Crusher Plant

STOCK UNIT HAS A 2025 Feeder and a crusher fully reconditioned in 2025 (orig 2013).

The Lippmann 5165LS Portable Impact Crusher Plant is a large, heavy-duty secondary crushing plant designed for high-production crushed stone, aggregates, concrete recycling, asphalt, and other demanding crushing applications. Built around Lippmann’s proven 51" × 65" horizontal shaft impact crusher, the 5165LS combines high reduction capability with a heavy-duty 62" × 20' vibrating grizzly feeder and front-discharge conveyor on a rugged wheeled portable chassis.

• Heavy-duty Lippmann 5165LS secondary horizontal shaft impact crusher
• Large 51" × 65" impactor designed for high-production secondary crushing
• Heavy-duty 62" × 20' vibrating grizzly feeder provides controlled, high-volume feeding to the crusher
• Grizzly section allows undersize material to bypass the impactor, reducing unnecessary wear and increasing plant efficiency
• Front-discharge conveyor carries crushed material forward for stockpiling or feeding downstream screening and conveying equipment
• Heavy-duty Andreas-style impact crusher design provides high reduction ratios and excellent product shape
• Four replaceable blow bars with multiple wear positions help maximize wear life and maintain consistent product gradation
• Adjustable crushing curtains provide control over product size, reduction, and production
• Production can exceed 400 tons per hour, depending on crusher settings, feed material, feed size, and operating conditions
• Produces a high-quality, cubical finished product
• Designed to operate behind a primary jaw crusher or other primary crushing plant
• Excellent choice for limestone, crushed stone, aggregates, concrete recycling, asphalt recycling, and contract crushing
• Heavy-duty American-made Lippmann construction designed for sustained high-production operation

At the heart of the plant is the Lippmann 5165LS secondary impact crusher. The large 51" × 65" impactor, heavy-duty 62" × 20' feeder, and adjustable crushing system provide the capacity and reduction required for demanding secondary applications. With production capable of exceeding 400 tons per hour, the 5165LS is particularly well suited for high-production crushed stone operations and aggregates producers requiring substantial secondary reduction with a consistent, cubical finished product.
