R155 McCloskey Scalper Screener

R155 McCloskey. BRAND NEW WITH EXTENDED TAIL. FROM CANADA FACTORY. Several units new and used in stock in Indiana and Tennessee. Please call for availability.

McCloskey R155 Track-Mounted Heavy-Duty Scalping Screen

The McCloskey R155 Track-Mounted Scalping Screen is a large, heavy-duty high-energy screener designed for demanding crushed stone, recycled asphalt and concrete. Built around a large 16' × 5' two-deck screenbox, the R155 combines aggressive screening action, high production and track mobility with the ability to handle large and difficult feed material.

Heavy-duty track-mounted scalping screen

Large 16' × 5' top deck and 15' × 5' bottom deck

Approximately 155 square feet of screening area

High-energy two-bearing screenbox

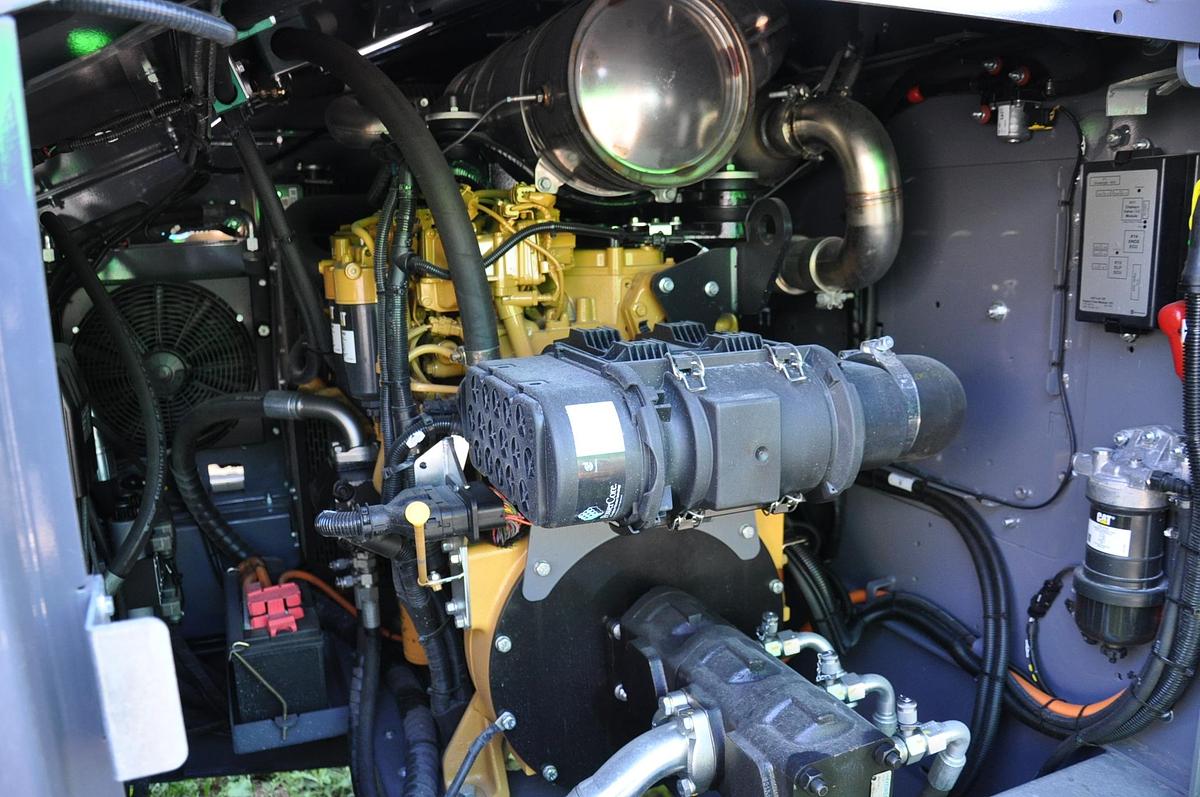

CAT C4.4 diesel engine

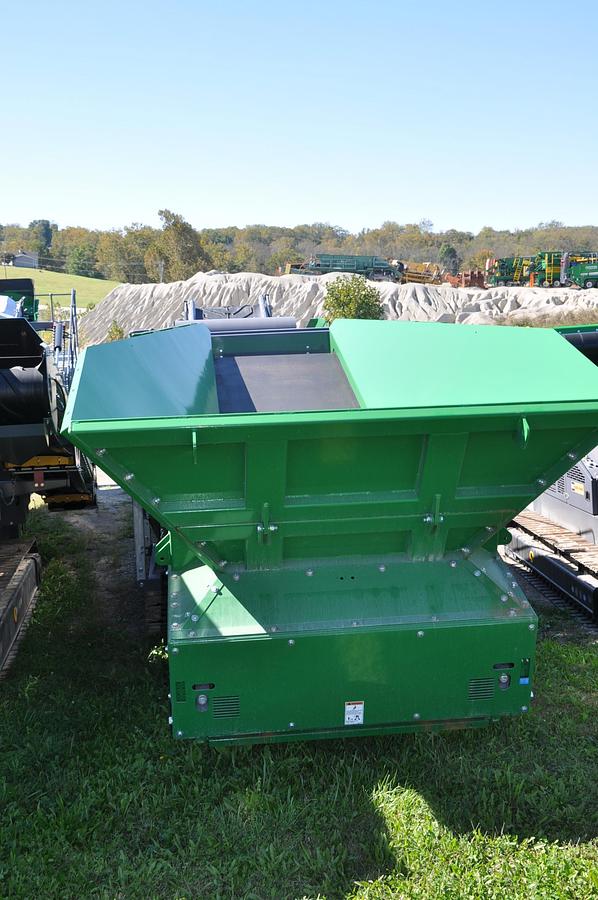

Large direct-feed hopper with variable-speed belt

Available with heavy-duty belt or plate apron feeder

Handles large rock, crushed stone, aggregates, demolition debris, sticky material and fines

Produces three material sizes simultaneously

Removable mid-size conveyor allows oversize from both decks to discharge through the tail conveyor for a single product cut, allowing the top deck to serve as a protector deck when producing finer material on the bottom deck

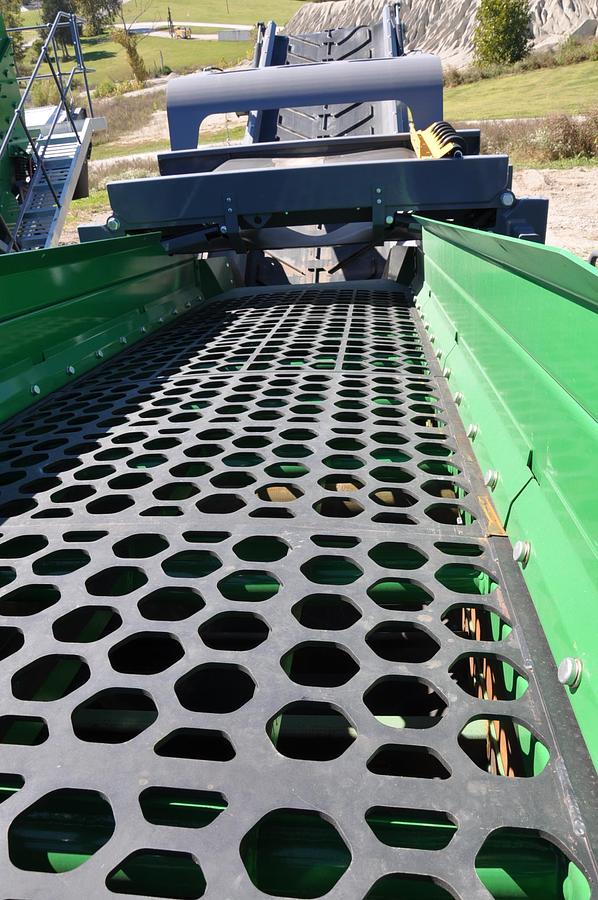

Multiple screen-media configurations including finger screens, punch plate and Bofor-style screens

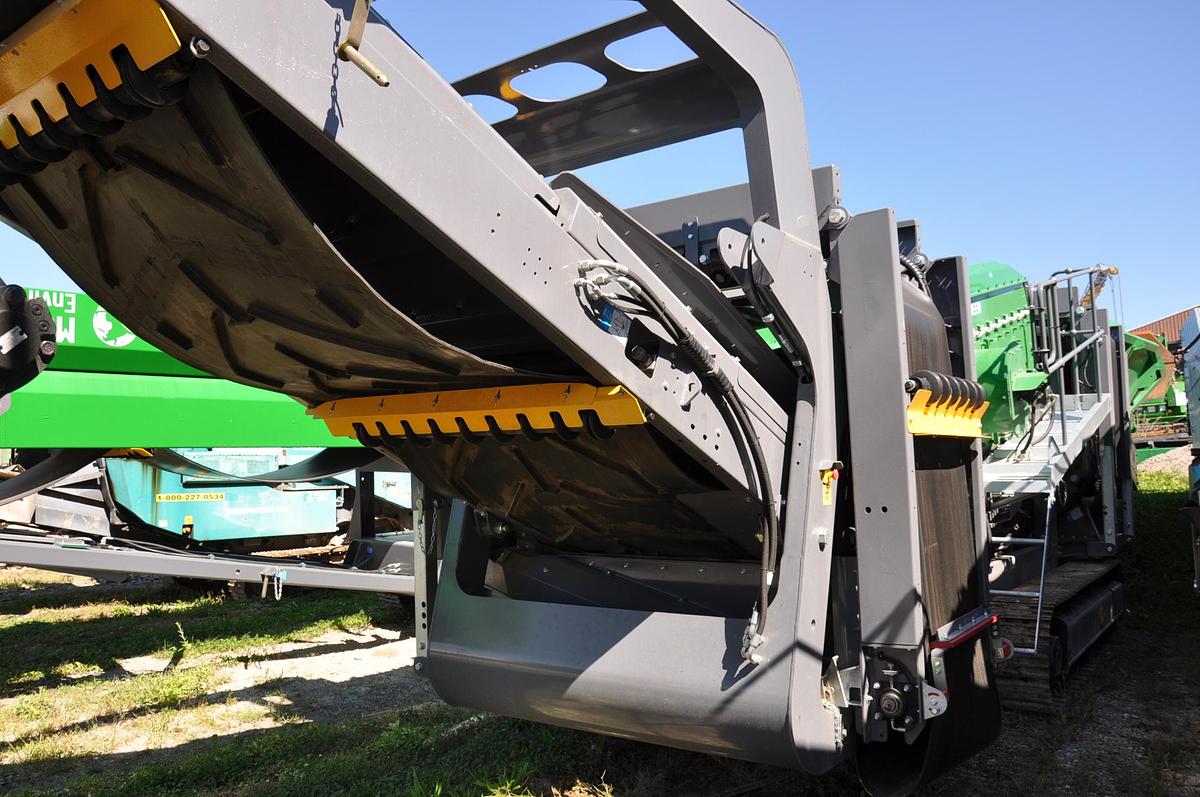

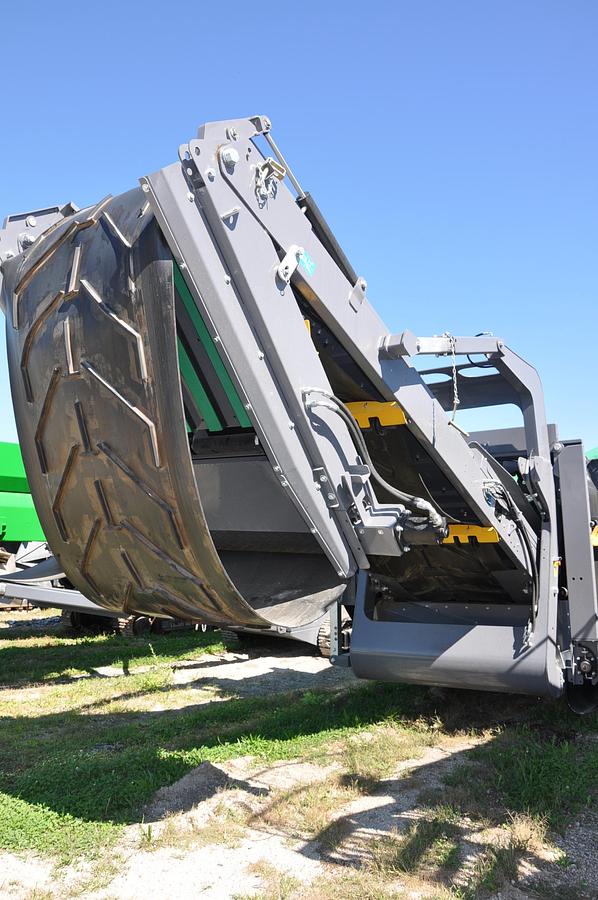

Hydraulic folding product conveyors

Screenbox raises for improved bottom-deck access

Heavy-duty tracked undercarriage for excellent jobsite mobility

Fast setup and straightforward operation

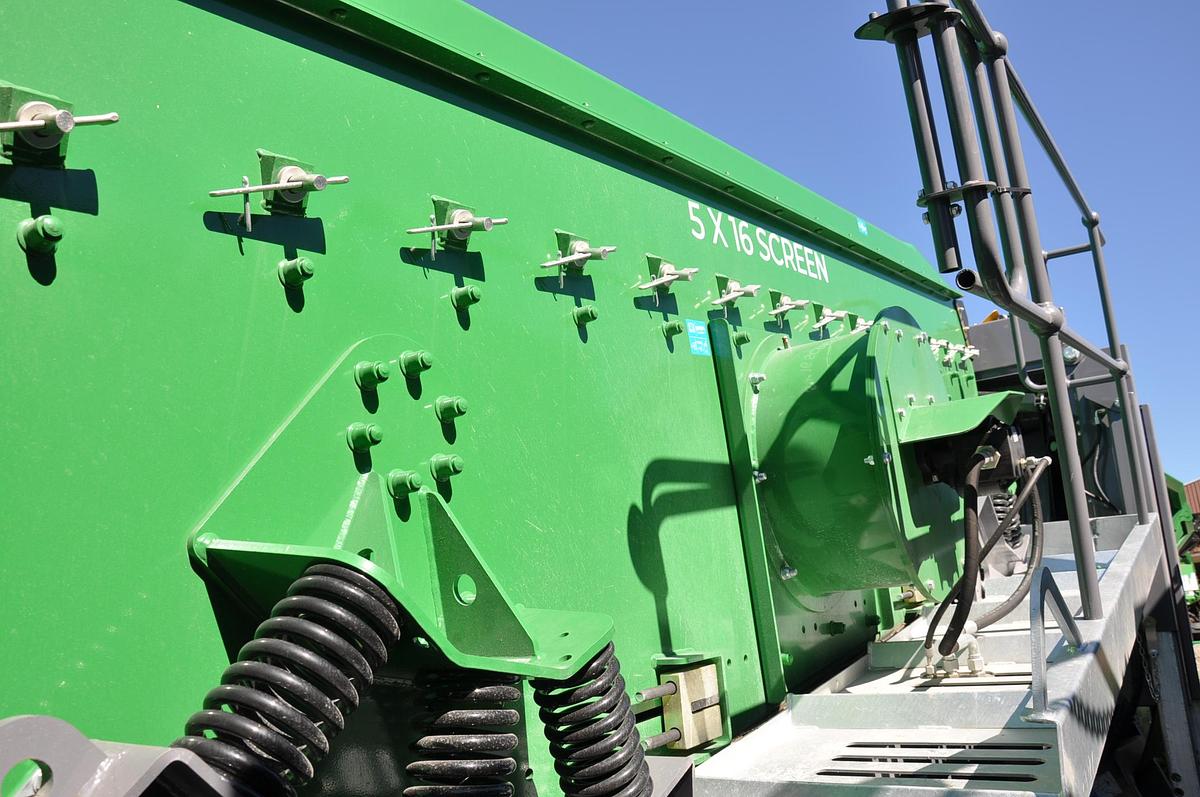

The 16' × 5' screenbox is the heart of the R155. Its large screening area and aggressive action make it particularly effective for heavy scalping and difficult feed material. Different screen-media configurations and the removable mid-size conveyor also allow the R155 to be configured for finer screening applications where protecting the bottom-deck media is important.

The R155 can operate as a primary scalper ahead of a jaw, impact or cone crusher, taking out a sized, finished product and sending the oversize only to the crusher, or as a stand-alone plant producing multiple products. Its combination of heavy-duty construction, versatility and mobility makes it well suited for quarry, crushed stone, recycled asphalt and concrete.

Franklin Rock & Recycle is the exclusive distributor for sales and rentals of McCloskey International equipment in Indiana, Kentucky, Tennessee and Alabama. Franklin Rock & Recycle provides crushing, screening and conveying equipment, parts and service support throughout the Midwest and Mid-South.
