Lippmann 36" x 50" 3650J Jaw Crushing Plant

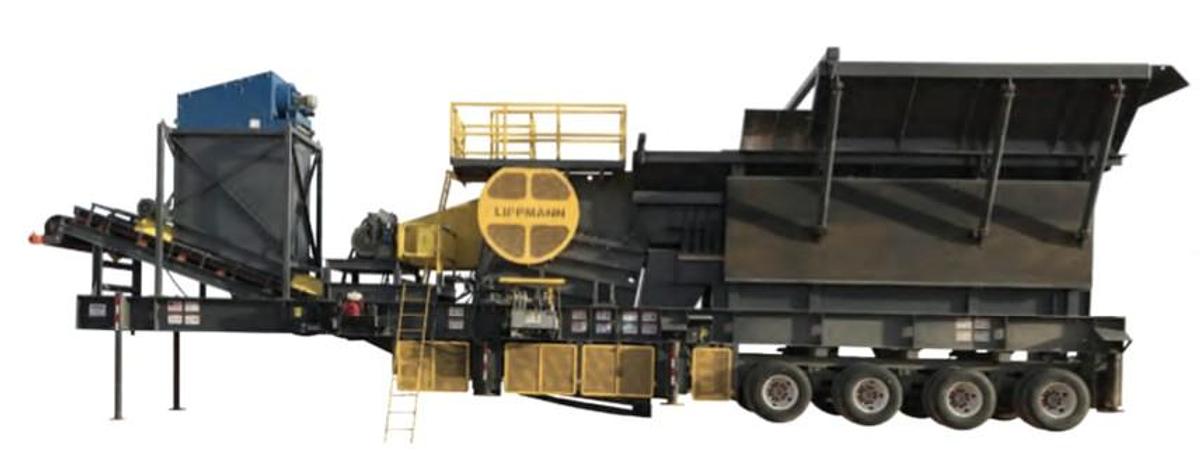

Lippmann 3650J 36" × 50" Wheeled Portable Jaw Crusher Plant

The Lippmann 3650J is a heavy-duty, American-made portable jaw crusher plant designed for high-production primary crushing in demanding quarry, crushed stone, aggregates, and mining applications. Featuring a massive 36" × 50" Lippmann jaw crusher, heavy-duty vibrating grizzly feeder, and rugged quad-axle wheeled chassis, the 3650J delivers exceptional crushing capacity and reliable performance in continuous-duty operations.

Key Features & Specifications

36" × 50" heavy-duty Lippmann jaw crusher with 250 HP electric drive.

Production capabilities exceeding 1,300 tons per hour, depending on material characteristics and operating conditions.

Maximum feed size up to 30", accommodating large shot rock and other demanding materials.

51" × 24' or 51" × 20' heavy-duty vibrating grizzly feeder, with 60 HP electric drive and 6' grizzly section for removing fines ahead of the crusher.

Large-capacity feed hopper, over 9' wide and 20' long, designed for loading with large wheel loaders or excavators.

Heavy-duty jaw construction featuring a robust steel frame, forged alloy eccentric shaft, and tapered roller bearings.

Automatic oil lubrication system for dependable operation and reduced maintenance requirements.

Closed-side settings from 3.5" to 14", depending on toggle configuration.

Optional hydraulic toggle system with hydraulic relief protection for uncrushable material.

Optional 54" wide front discharge conveyor with hydraulic raise/lower tail section.

Heavy-duty quad-axle wheeled portable chassis with hydraulic leveling jacks for stability and efficient plant setup.

Removable feeder and hopper module, with optional hydraulic removal system for transportation.

Multiple hopper extension options, elevated operator platform, and guarded drive components.

Production & Heavy-Duty Design

The Lippmann 3650J combines a large crushing chamber, aggressive vibrating grizzly feeder, and heavy-duty construction to deliver outstanding primary crushing capacity. With production capabilities exceeding 1,300 tons per hour, the plant is well suited for high-volume crushed stone and aggregates operations.

Its rugged construction and heavy-duty components are engineered for continuous operation in hard-rock applications. The quad-axle wheeled portable design provides flexibility for relocation between job sites while maintaining the production and durability expected from a large primary crushing installation.

36" × 50" Jaw Crusher | 1,300+ TPH | 250 HP Electric Drive | Heavy-Duty Vibrating Grizzly Feeder | Quad-Axle Portable Chassis
