Lippmann 30" x 48" 3048J Jaw Crushing Plant

New 30x48 Jaw Crushing Plant. Early 2027 Availability.

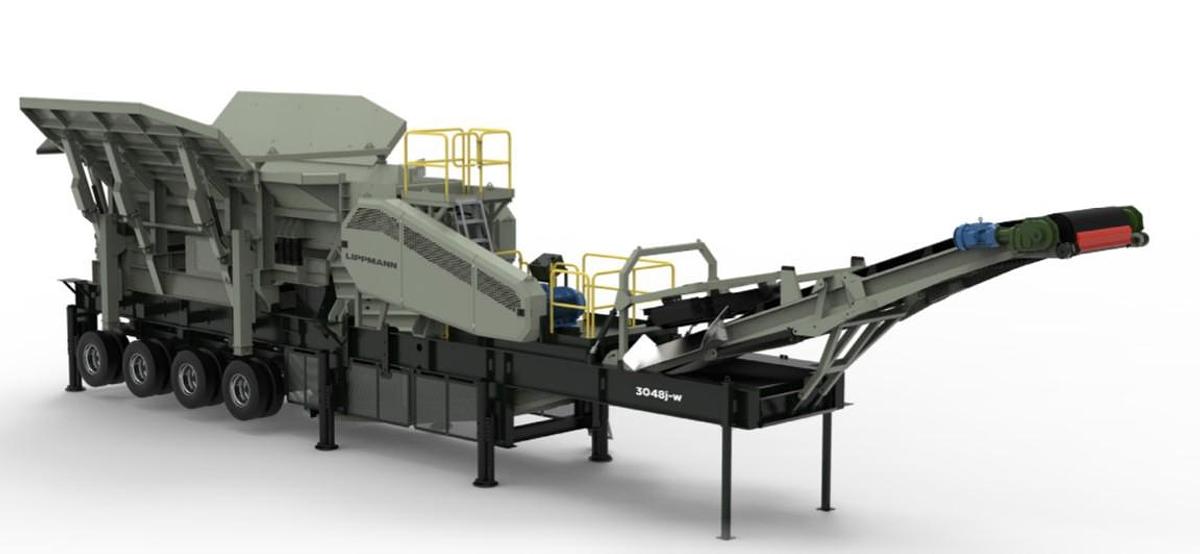

Lippmann 3048J 30" × 48" Wheeled Portable Jaw Crusher Plant

The Lippmann 3048J is a heavy-duty, American-made portable jaw crusher plant designed for high-production primary crushing in demanding quarry, crushed stone, aggregates, and recycling applications. Featuring a rugged 30" × 48" Lippmann jaw crusher, heavy-duty vibrating grizzly feeder, and wheeled portable chassis, the 3048J delivers reliable crushing performance with the flexibility to relocate between job sites.

Key Features & Specifications

30" × 48" heavy-duty Lippmann jaw crusher with 200 HP electric drive.

Production capabilities up to approximately 720 tons per hour, depending on material characteristics, crusher settings, and operating conditions.

Maximum feed size up to 27", accommodating large shot rock and other demanding materials.

51" × 20' heavy-duty vibrating grizzly feeder with 40 HP drive and 5' grizzly section for removing fines ahead of the crusher.

20-ton capacity feed hopper, constructed with abrasion-resistant steel for demanding loading conditions.

Heavy-duty jaw construction featuring a stress-relieved steel frame, one-piece steel pitman, forged alloy eccentric shaft, and oversized tapered roller bearings.

Reversible manganese steel jaw dies and heavy-duty steel cheek plates for durability and wear resistance.

Automatic lubrication system designed to support dependable operation and reduce maintenance requirements.

Closed-side settings from 3" to 8", depending on toggle configuration.

Optional hydraulic toggle system for crusher adjustment and protection.

48" wide discharge conveyor with adjustable tail section.

Heavy-duty wheeled portable chassis designed for transportation and efficient plant setup.

Available hydraulic leveling jacks, hopper extensions, and under-grizzly cross conveyor options.

Production & Heavy-Duty Design

The Lippmann 3048J combines a large crushing chamber, heavy-duty vibrating grizzly feeder, and rugged construction to deliver dependable primary crushing capacity. With production capabilities reaching approximately 720 tons per hour, the plant is well suited for crushed stone, aggregates, and recycling operations requiring consistent performance.

The 3048J features one of Lippmann’s established heavy-duty jaw crusher designs, engineered for continuous operation in hard-rock applications. Its wheeled portable configuration provides flexibility for relocation while maintaining the durability and performance expected from a substantial primary crushing installation.

30" × 48" Jaw Crusher | Up to 720 TPH | 200 HP Electric Drive | 51" × 20' Vibrating Grizzly Feeder | Heavy-Duty Portable Chassis
