McCloskey C4 Cone Plant

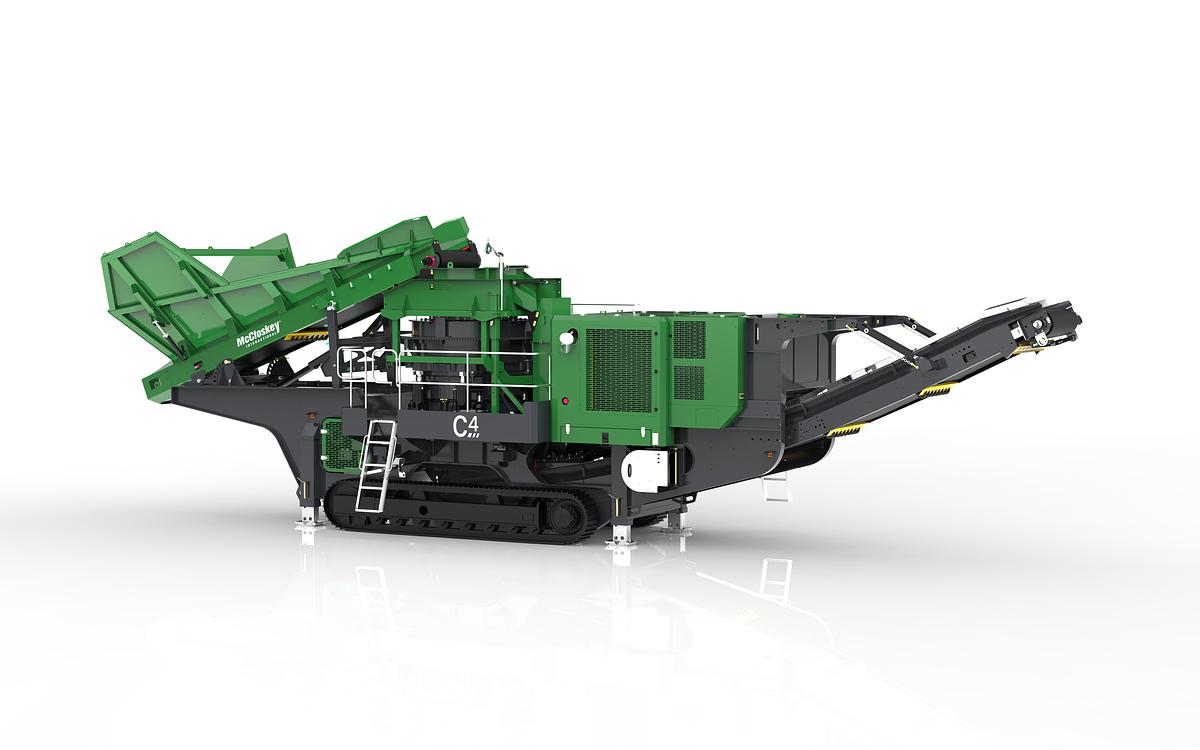

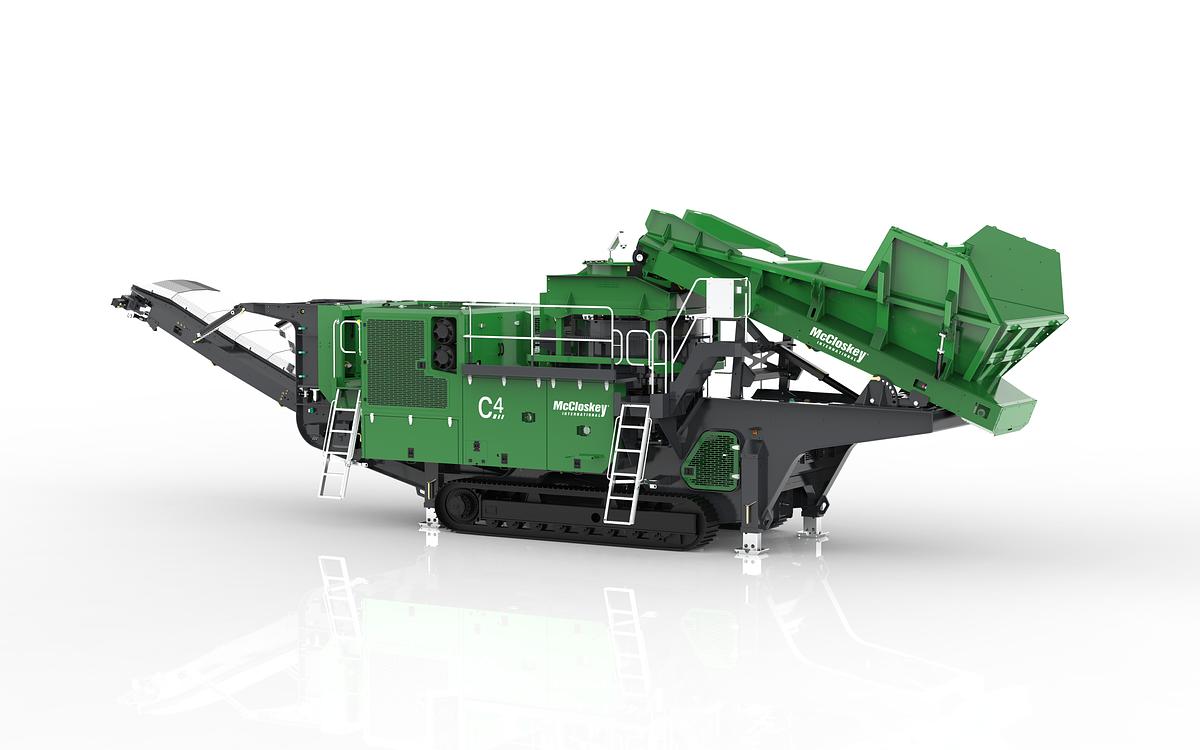

McCloskey C4 Track Mounted Cone Crusher Plant

The McCloskey C4 Track Mounted Cone Crusher is a large, heavy-duty, high-production crushing plant designed for demanding secondary and tertiary crushed stone and aggregates applications. Powered by a 612 HP Volvo D16 engine and built around a 400 HP Metso MC400 cone crusher, the C4 combines substantial crushing power, high-capacity material handling, and track mobility in a machine designed for serious production.

Heavy-duty 400 HP Metso MC400 cone crusher

Powerful 612 HP Volvo D16 engine

Large 44.5" cone feed opening provides substantial capacity for secondary and tertiary crushing applications

Direct-drive cone crusher efficiently transfers power to the crushing chamber

Hydraulic closed-side setting adjustment allows the crusher to be quickly adjusted for changing product requirements

Minimal reliance on complex electronics. The C4’s straightforward mechanical and hydraulic design makes problems easier for your mechanic to find and diagnose, helping reduce downtime

Cone crusher can be equipped with many different liner configurations to optimize the C4 for different feed sizes, reduction requirements, and finished-product specifications

Large 6.5 yd³ level / 8.1 yd³ heaped hopper provides substantial feed capacity

Heavy-duty 48" feeder belt delivers material to the cone crusher

High-capacity 48" main discharge conveyor efficiently moves material away from the crusher

Open chassis design provides excellent access to major components for maintenance and service

Produces a consistent, well-shaped finished product for crushed stone and aggregates applications

Excellent choice for crushing abrasive materials such as river rock and even slag. The C4 is particularly well suited for applications where abrasive feed material can create excessive wear for impactor-style crushers

Track-mounted undercarriage provides excellent mobility around the quarry or jobsite

Particularly well suited for operation behind a large jaw crusher or other high-production primary crushing plant

Fast setup allows the C4 to be efficiently incorporated into portable crushing and screening spreads

Heavy-duty McCloskey construction designed for demanding quarry and contract crushing operations

At the heart of the McCloskey C4 is its 400 HP Metso MC400 cone crusher. Combined with the 612 HP Volvo D16 power unit, the C4 provides the crushing power and material-handling capacity needed for demanding, high-production secondary and tertiary applications. Its large cone, direct crusher drive, heavy-duty construction, and track-mounted design make the C4 particularly well suited for high-production crushed stone operations and aggregates producers processing hard or abrasive material.
