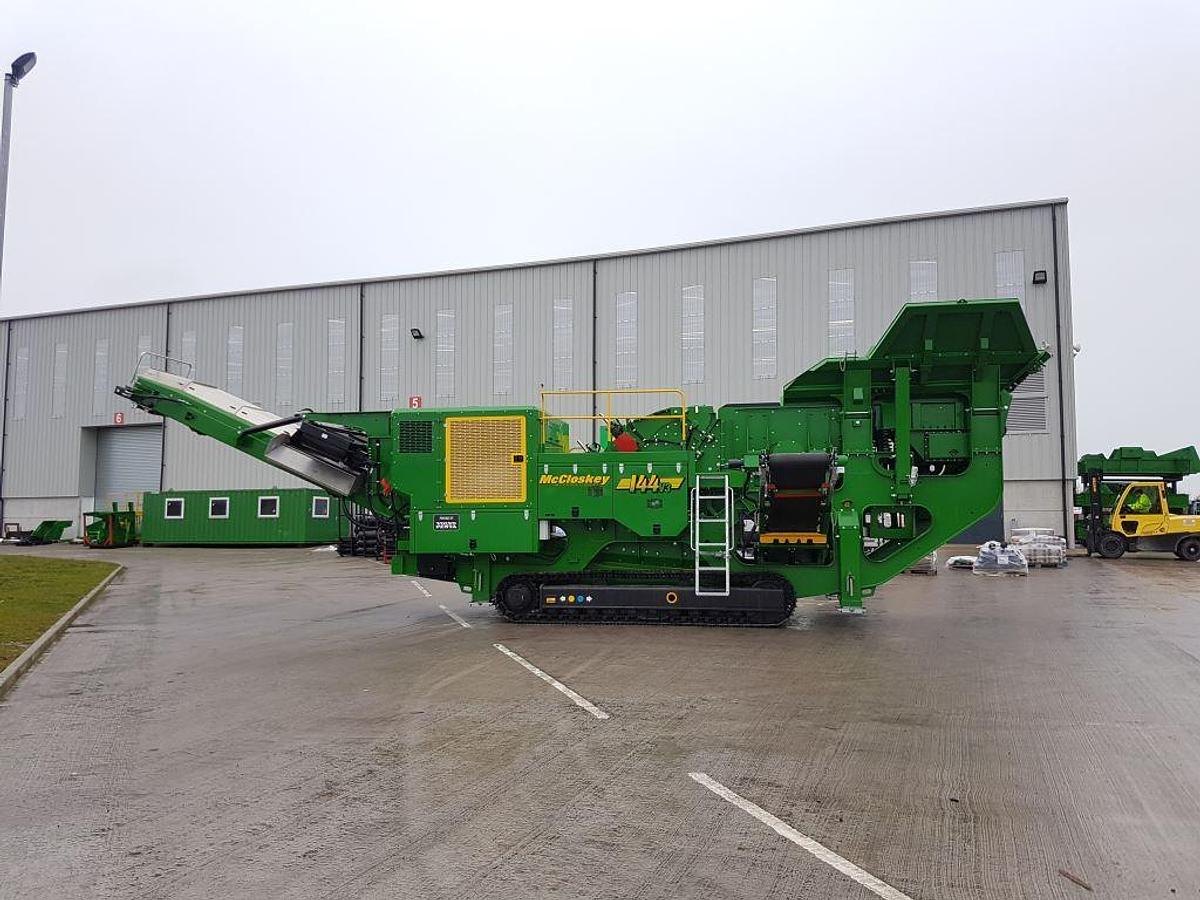

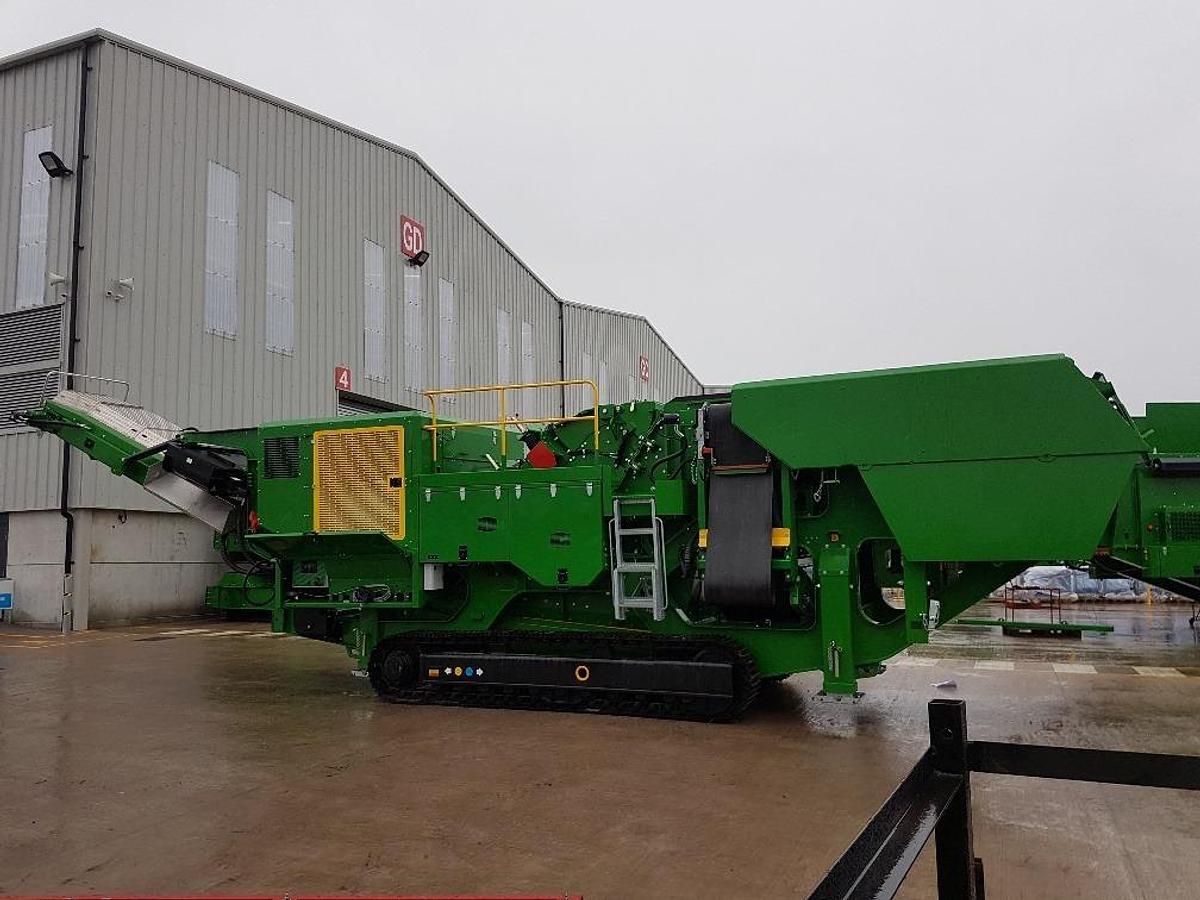

McCloskey I44v3 Impact Crusher

New McCloskey I44v3 Impact Crusher- Call for Price and Availability!

McCloskey I44v3 Tracked Impact Crusher Plant

The McCloskey I44v3 Impact Crusher Plant is a heavy-duty, high-production tracked impact crusher designed for quarry operations, aggregate production, concrete and asphalt recycling, and construction and demolition material processing. Featuring a powerful 44-inch class impactor, direct-drive crusher system, and rugged North American construction, the I44v3 delivers excellent production capacity, consistent material sizing, and reliable performance in demanding crushing applications.

The I44v3 offers the same proven crushing technology as the I44Rv3HD, but in a more compact, open-circuit configuration without the integrated finishing screen and recirculation system.

Crusher

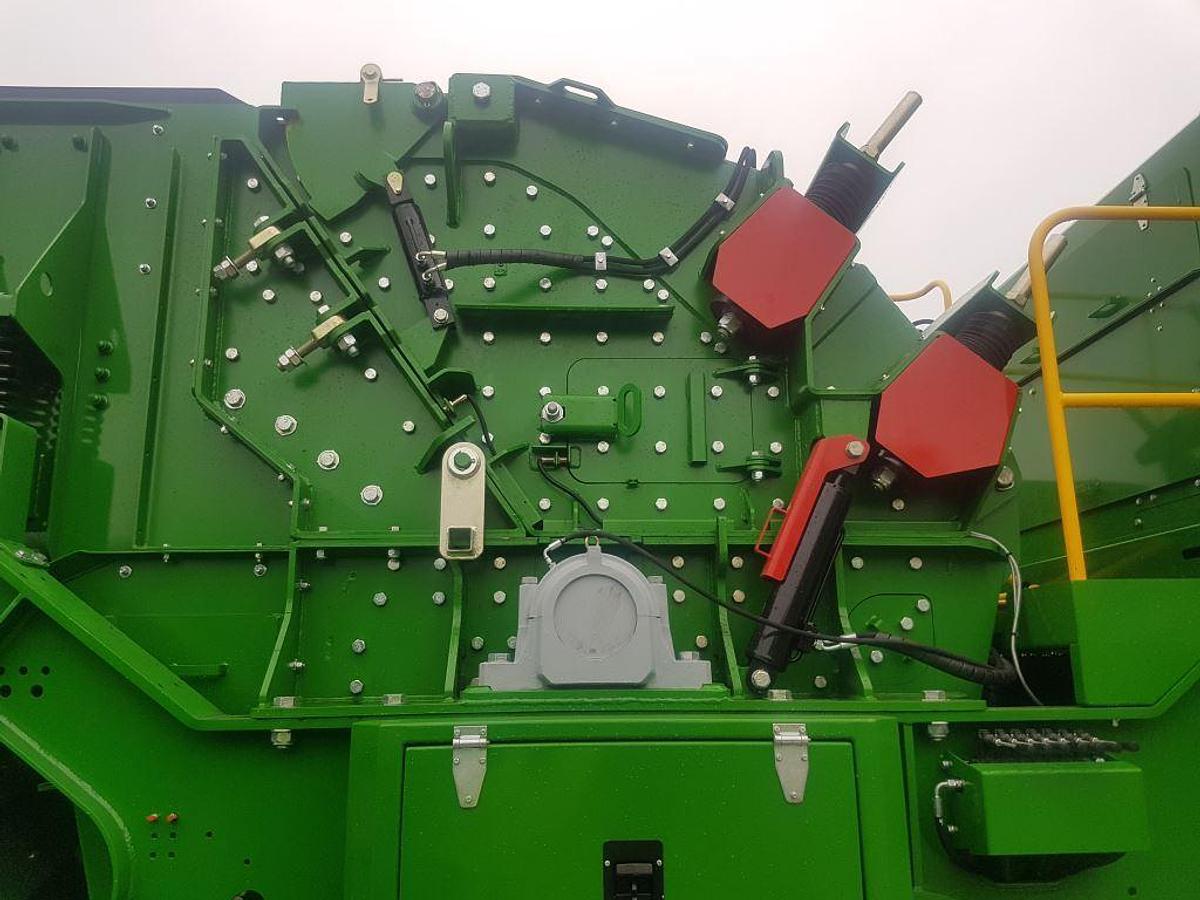

44.3" Wide x 41.3" Diameter Impactor: Heavy-duty impact crusher designed for high production and excellent reduction ratios.

Four-Bar Rotor: Heavy-duty rotor design provides aggressive crushing action and consistent product gradation.

Direct-Drive Crusher: Efficient power transfer from the diesel engine to the impactor, minimizing power loss and improving fuel efficiency.

Adjustable Crusher Settings: Allows operators to control finished product sizing and adapt to varying material requirements.

Heavy-Duty Wear Components: Replaceable blow bars and impact plates designed for demanding aggregate and recycling applications.

High Production Capacity: Capable of processing several hundred tons per hour, depending on feed material, crusher settings, and application.

Feeder & Pre-Screen

Heavy-Duty Vibrating Feeder: Provides consistent material flow into the crusher for efficient, continuous operation.

Optional Double-Deck Grizzly Pre-Screen: Allows fines and smaller material to bypass the crusher, improving overall production efficiency and reducing unnecessary wear.

Hydraulically Folding Hopper: Designed for efficient loading with wheel loaders or excavators.

Variable Feeder Speed: Allows operators to regulate material flow and optimize crusher performance.

Discharge & Material Handling

Heavy-Duty Main Discharge Conveyor: Transfers crushed material away from the impactor for stockpiling or feeding downstream equipment.

Optional Cross-Belt Magnet: Removes ferrous metal from crushed concrete, demolition material, and other recycling applications.

Open-Circuit Crushing Configuration: Ideal for feeding a separate screening plant or producing material for additional processing.

Hydraulically Folding Conveyors: Simplify transportation and setup between jobsites.

Power & Mobility

350–360 HP Class Diesel Engine: Provides power for demanding crushing applications.

Tracked Undercarriage: Allows easy movement around quarry sites, recycling yards, and construction projects.

Compact Plant Configuration: Without the integrated finishing screen and return conveyor, the I44v3 offers easier transport, setup, and maneuverability compared with the I44Rv3HD.

Service-Friendly Design: Accessible maintenance points and straightforward mechanical systems help reduce downtime.

Applications

Primary and secondary crushing of limestone and other quarry materials

Concrete crushing and recycling, including reinforced concrete

Asphalt pavement recycling

Construction and demolition debris processing

Production of crushed stone and construction aggregates

Feeding separate screening plants in high-production crushing circuits

Key Advantages

Proven McCloskey impact crusher design with excellent production capability.

Heavy-duty North American construction built for demanding applications.

Direct-drive impactor provides efficient power transfer and strong crushing performance.

Excellent versatility for both quarry production and recycling applications.

Compact tracked configuration without the additional weight and complexity of an integrated finishing screen.

Well suited for contractors who operate separate screening equipment or require a dedicated high-production impact crusher.
