R155 McCloskey Scalper Screener

R155 McCloskey with Extra Large Hopper. Several units new and used in stock in Indiana and Tennessee. Please call for availability.

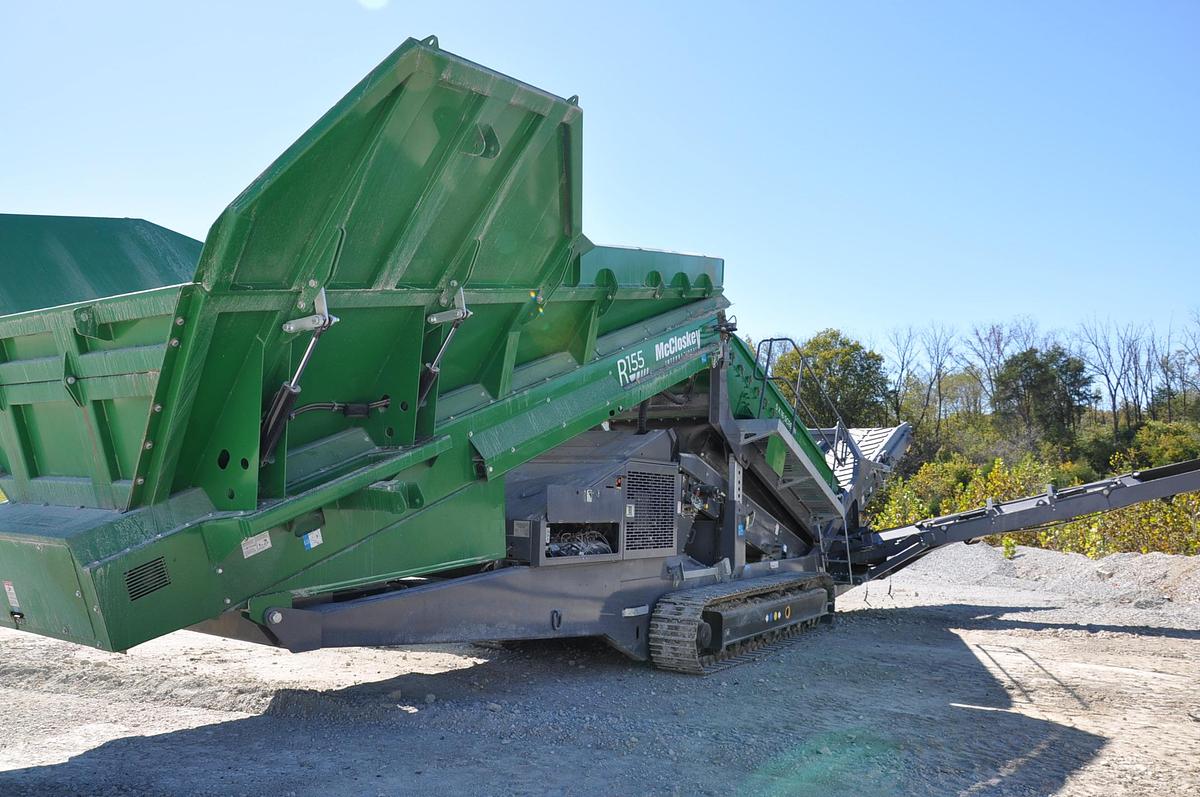

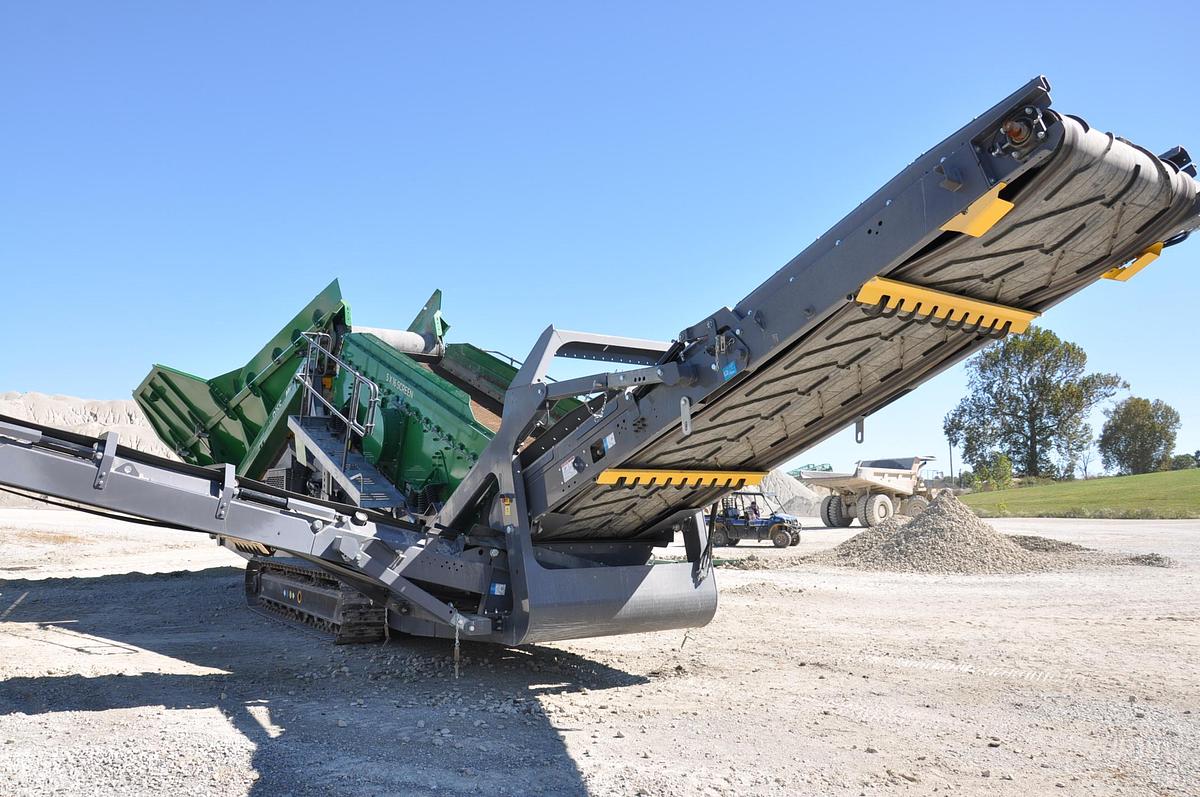

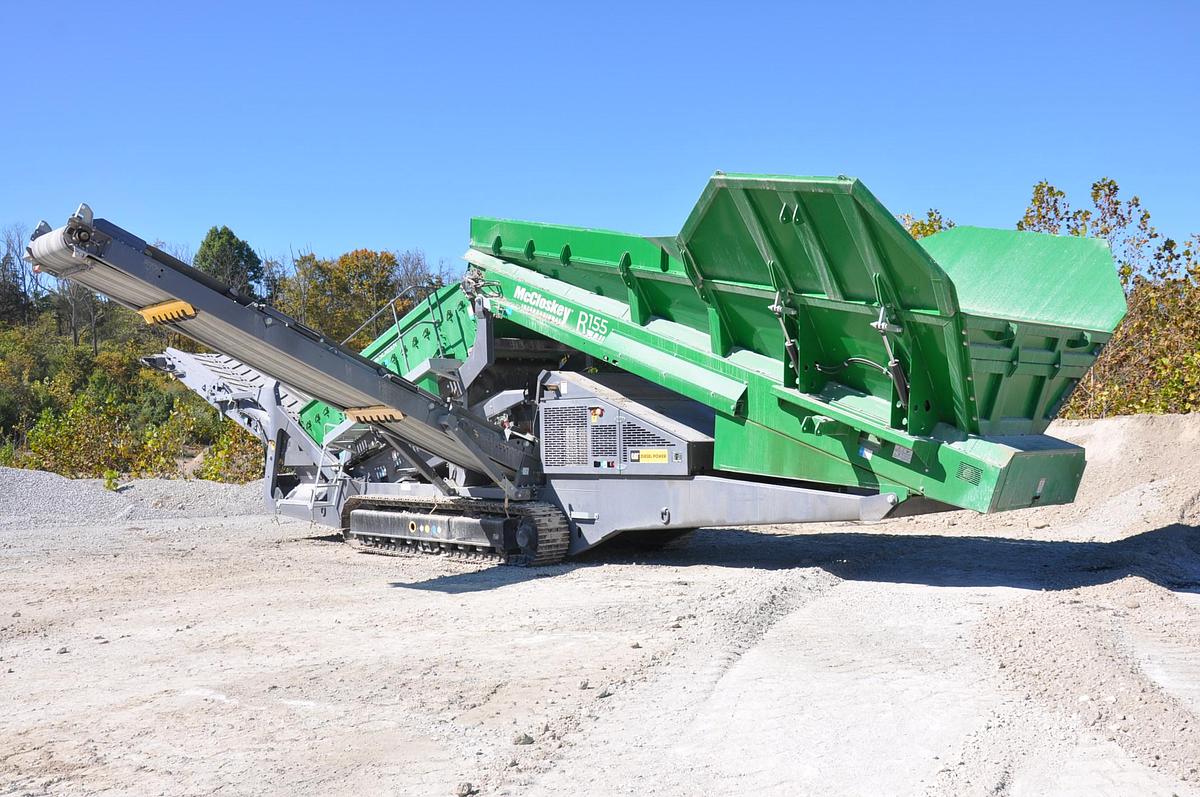

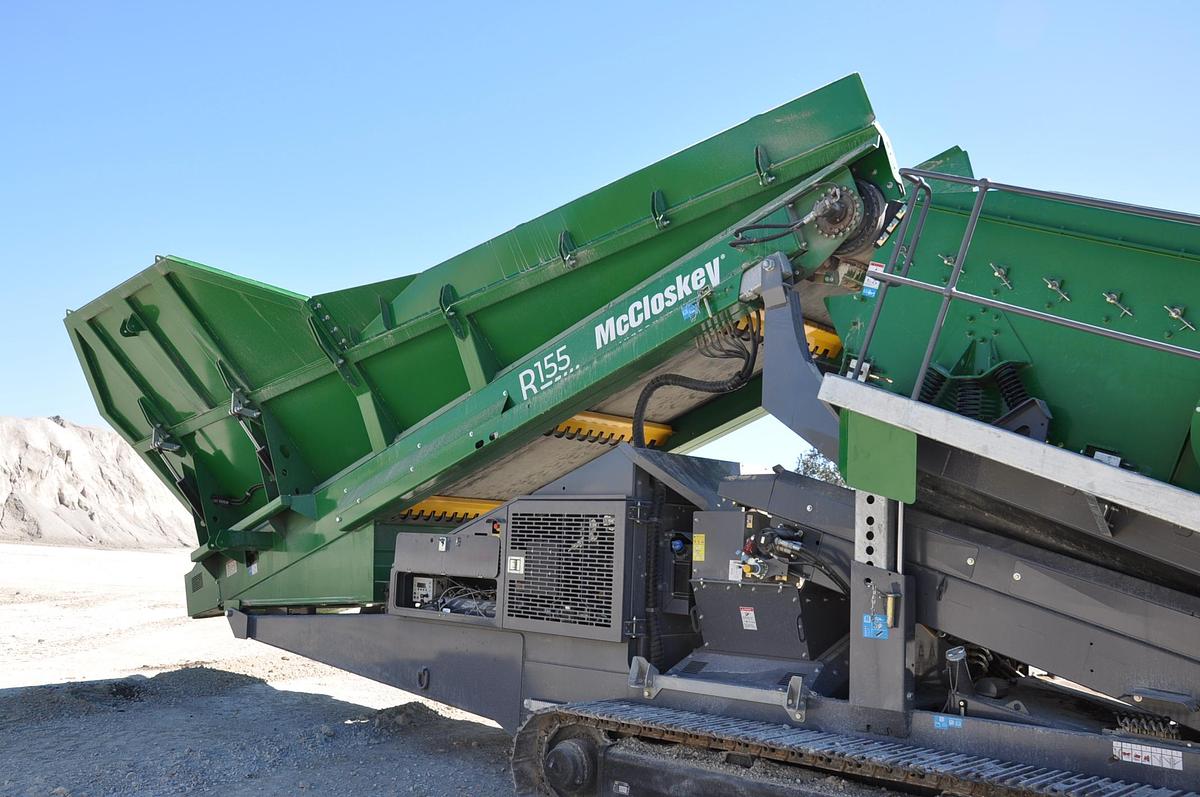

McCloskey R155 Track-Mounted Heavy-Duty Scalping Screen

The McCloskey R155 Track-Mounted Scalping Screen is a large, heavy-duty high-energy screener designed for demanding crushed stone, recycled asphalt and concrete. Built around a large 16' × 5' two-deck screenbox, the R155 combines aggressive screening action, high production and track mobility with the ability to handle large and difficult feed material.

Heavy-duty track-mounted scalping screen

Large 16' × 5' top deck and 15' × 5' bottom deck

Approximately 155 square feet of screening area

High-energy two-bearing screenbox

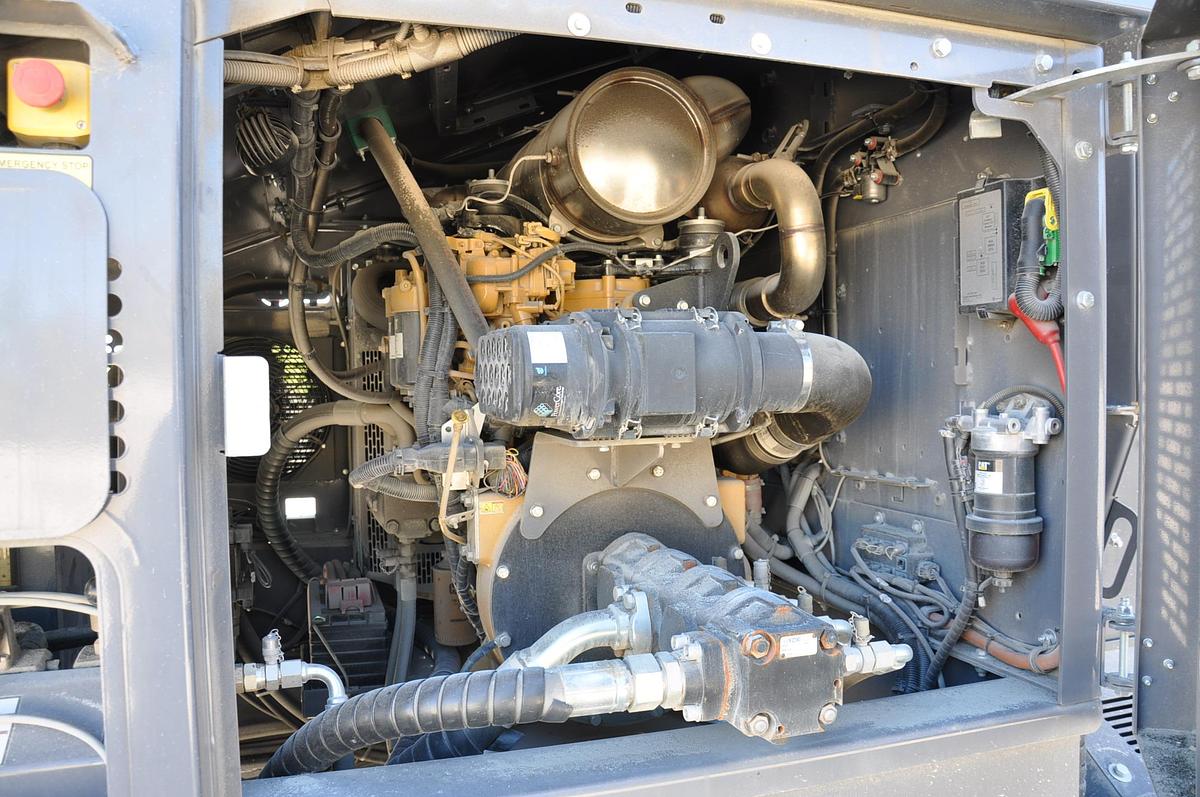

CAT C4.4 diesel engine

Large direct-feed hopper with variable-speed belt

Available with heavy-duty belt or plate apron feeder

Handles large rock, crushed stone, aggregates, demolition debris, sticky material and fines

Produces three material sizes simultaneously

Removable mid-size conveyor allows oversize from both decks to discharge through the tail conveyor for a single product cut, allowing the top deck to serve as a protector deck when producing finer material on the bottom deck

Multiple screen-media configurations including finger screens, punch plate and Bofor-style screens

Hydraulic folding product conveyors

Screenbox raises for improved bottom-deck access

Heavy-duty tracked undercarriage for excellent jobsite mobility

Fast setup and straightforward operation

The 16' × 5' screenbox is the heart of the R155. Its large screening area and aggressive action make it particularly effective for heavy scalping and difficult feed material. Different screen-media configurations and the removable mid-size conveyor also allow the R155 to be configured for finer screening applications where protecting the bottom-deck media is important.

The R155 can operate as a primary scalper ahead of a jaw, impact or cone crusher, taking out a sized, finished product and sending the oversize only to the crusher, or as a stand-alone plant producing multiple products. Its combination of heavy-duty construction, versatility and mobility makes it well suited for quarry, crushed stone, recycled asphalt and concrete.

Franklin Rock & Recycle is the exclusive distributor for sales and rentals of McCloskey International equipment in Indiana, Kentucky, Tennessee and Alabama. Franklin Rock & Recycle provides crushing, screening and conveying equipment, parts and service support throughout the Midwest and Mid-South.
