HM 6420 Bandit Horizontal Grinder

HM6420 Bandit Horizontal Grinder

Bandit HM-6420

40" Hammermill Grinder

40" tall x 64" wide mill opening

50" diameter x 66" wide hammermill

Standard Impact Detection System

Dual discharge system with a 16' 7" stacking height

Direct drive 16' long x 64" wide double slat design track-type steel infeed conveyor (82 - 132 FPM)

(1) 38.5" diameter 64.75" wide floating feed wheel

Radio remote with tether back-up

Caterpillar Model 325EL steel track undercarriage with HD drive

Standard air compressor

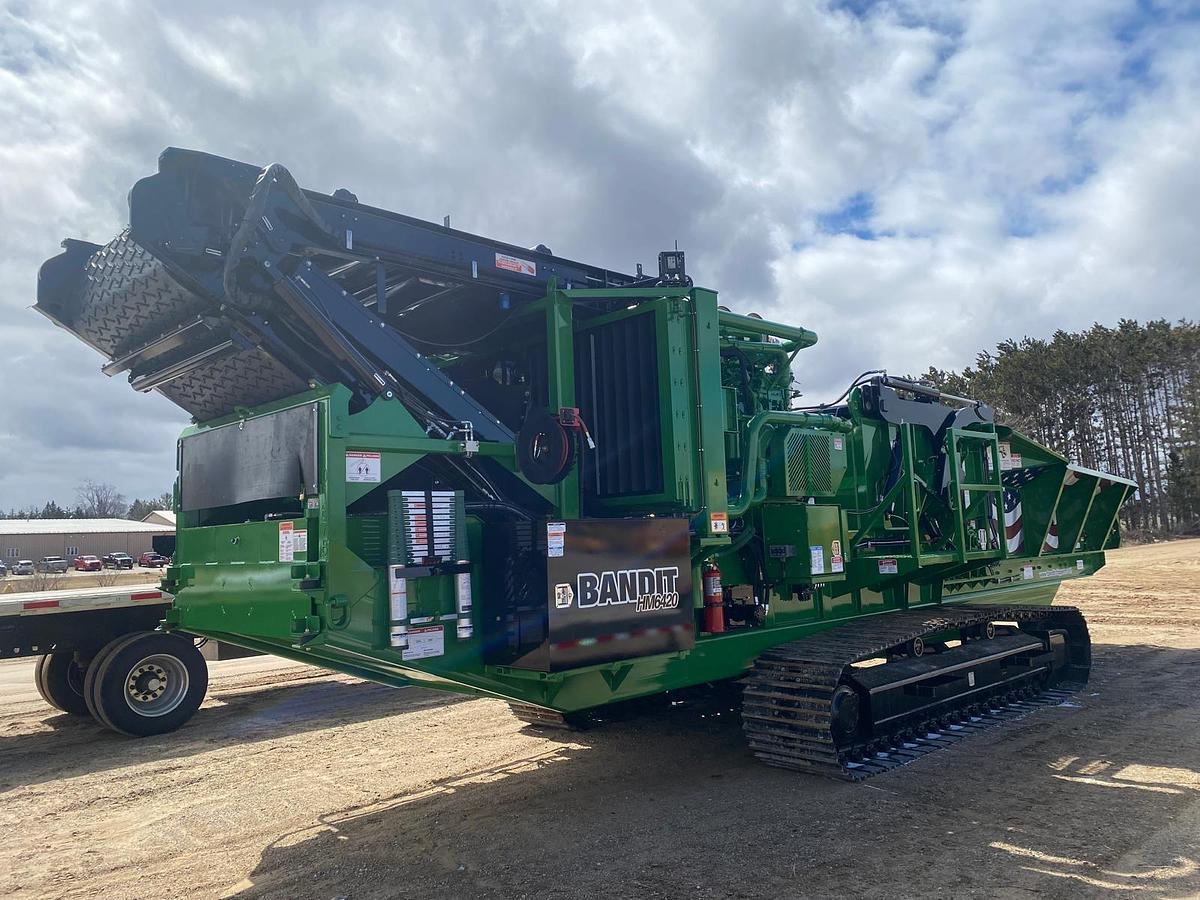

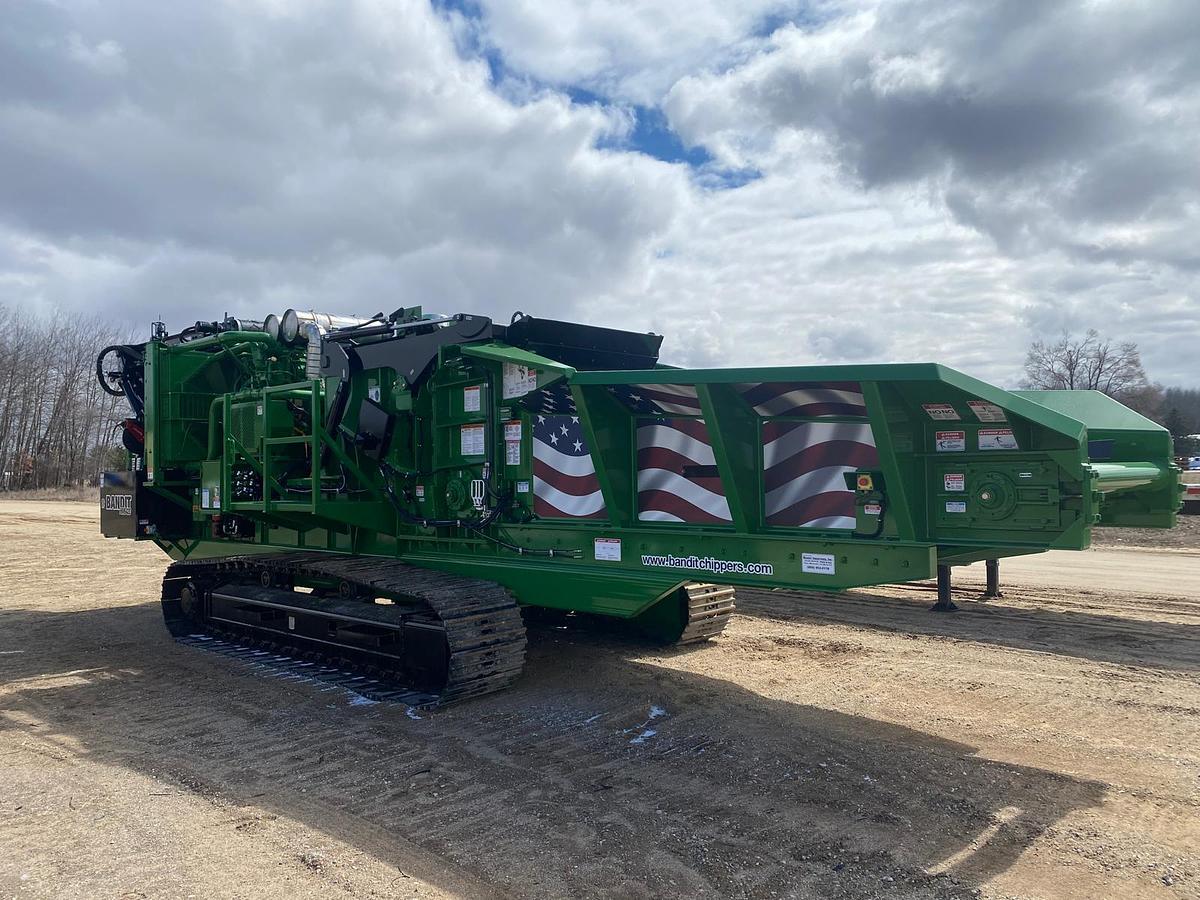

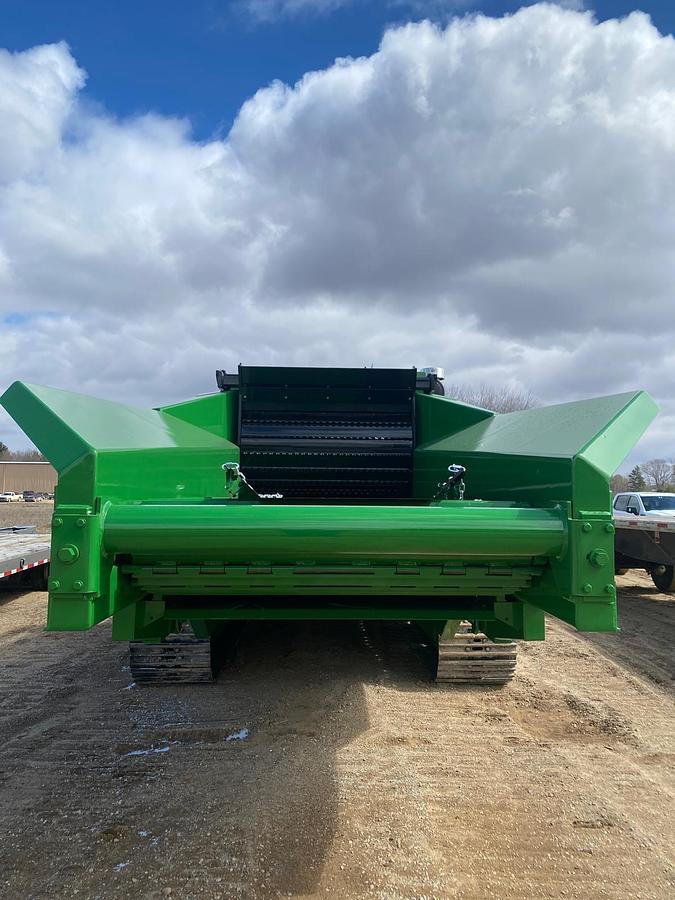

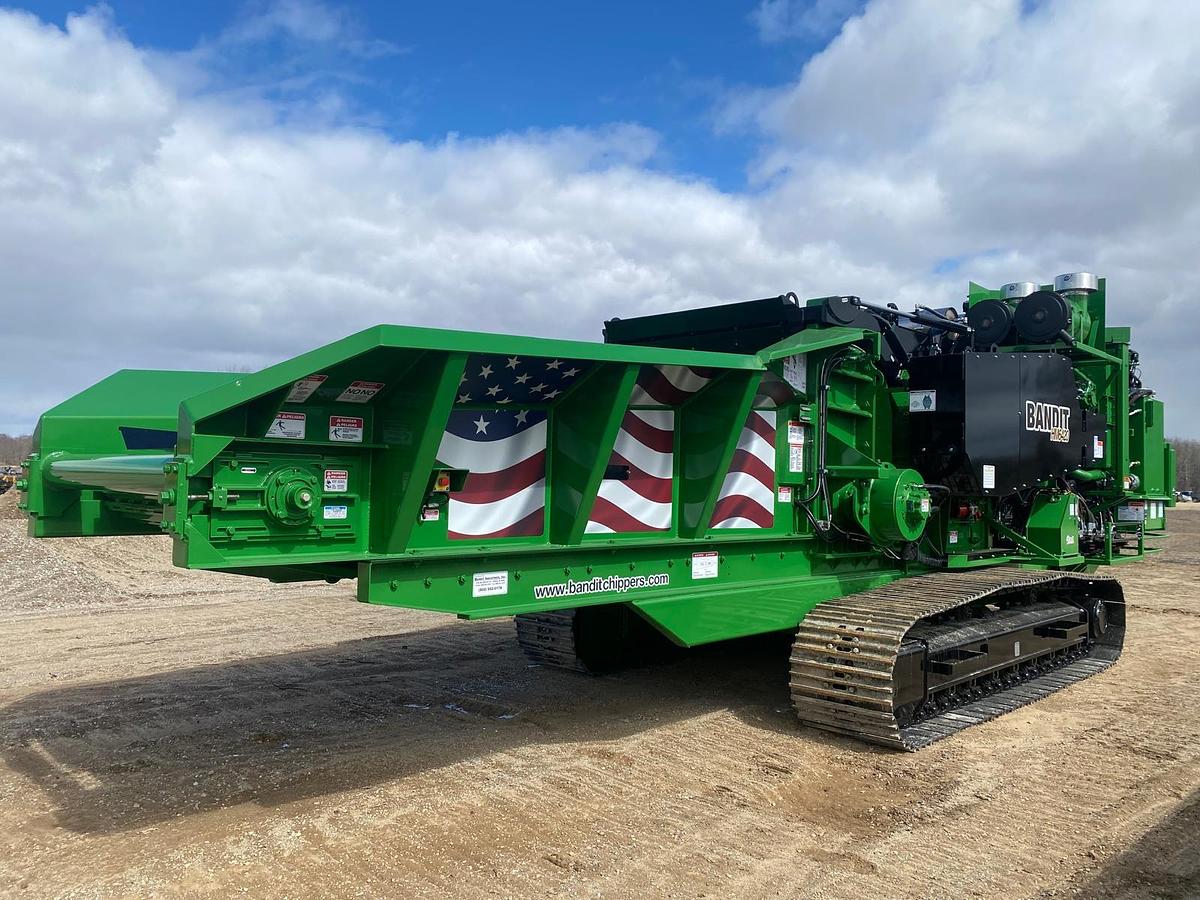

Bandit HM6420 Track Mounted Horizontal Hammermill Grinder

The Bandit HM6420 is a heavy-duty horizontal hammermill grinder for wood waste, land-clearing debris and mulch production. Powered by a 1,200 HP Caterpillar C32 diesel engine, the HM6420 combines a large grinding chamber, strong hydraulic feeding and track mobility for demanding material-processing operations.

Key Features and Specifications

40" grinding capacity with a 64" wide × 40" high mill opening.

50" diameter × 66" wide hammermill equipped with 20 carbide-infused hammer inserts.

Heavy-duty mill construction with a 1¾" thick drum skin and 7" alloy-steel main shaft.

High-strength steel mill pockets with recessed, replaceable hammer holders.

Bolted hammer inserts and quick-change holders simplify wear-part replacement.

Direct-drive slat-style infeed conveyor provides over 18,000 pounds of pulling power.

Hydraulic feed wheel provides additional pulling power and down pressure to compress bulky material.

Proportional feed system regulates material delivery into the grinding chamber.

Three replaceable sizing screens provide control over finished product size.

Top-access screen arrangement and removable cradle simplify screen changes.

Standard impact detection system reduces engine speed, disengages the clutch and reverses the feed when a damaging impact is detected.

56" wide dual discharge conveyor system.

Wireless remote control operates grinding and tracking functions and displays engine information.

Heavy-duty steel-track undercarriage for repositioning around the worksite.

The HM6420’s hammermill design provides an alternative for grinding applications where feed material may contain contaminants. Its large mill, high horsepower and strong feed system support processing bulky material, while replaceable screens allow operators to adjust finished product sizing.

Franklin Rock & Recycle is the exclusive dealer for Bandit equipment in Illinois, Indiana and Kentucky. Franklin Rock & Recycle provides equipment sales, rentals, parts and service support for land-clearing, forestry, recycling and material-processing operations.
